Description

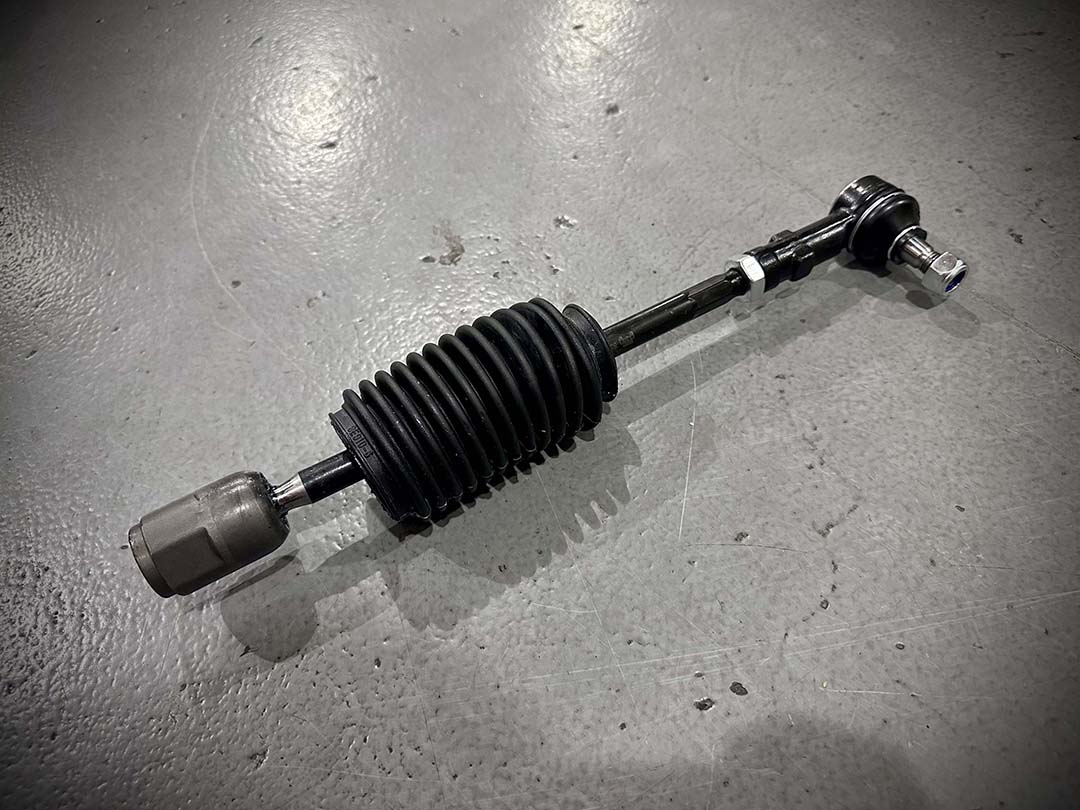

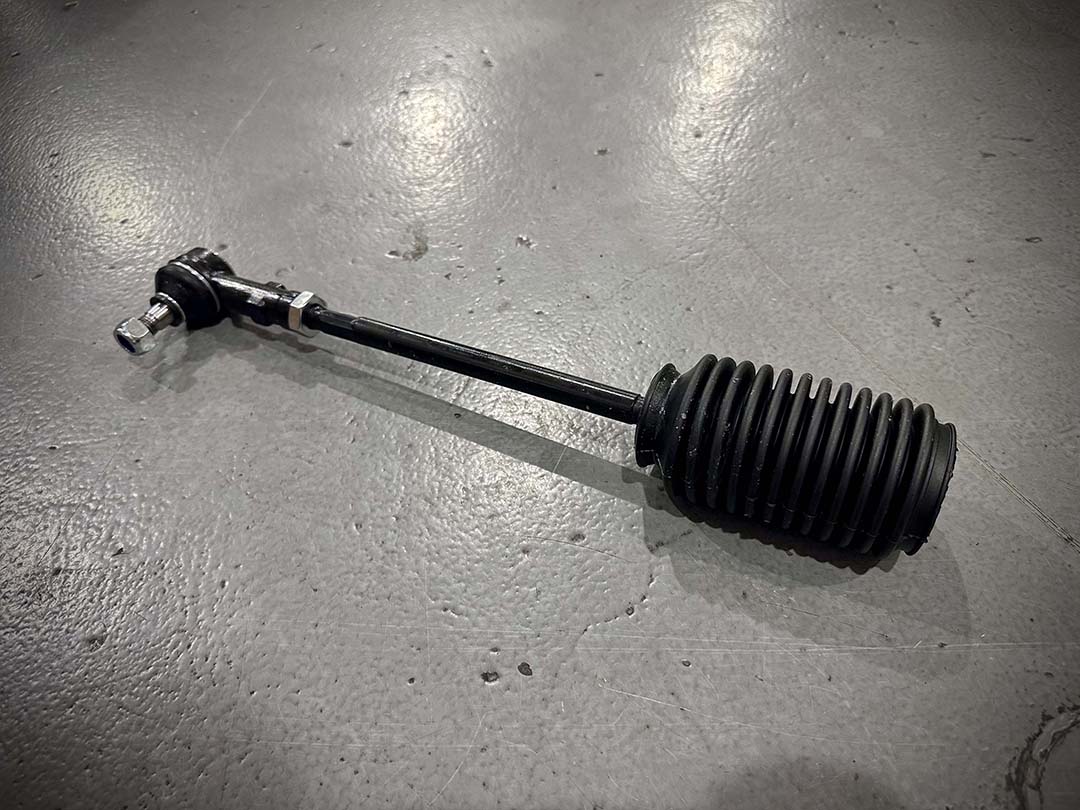

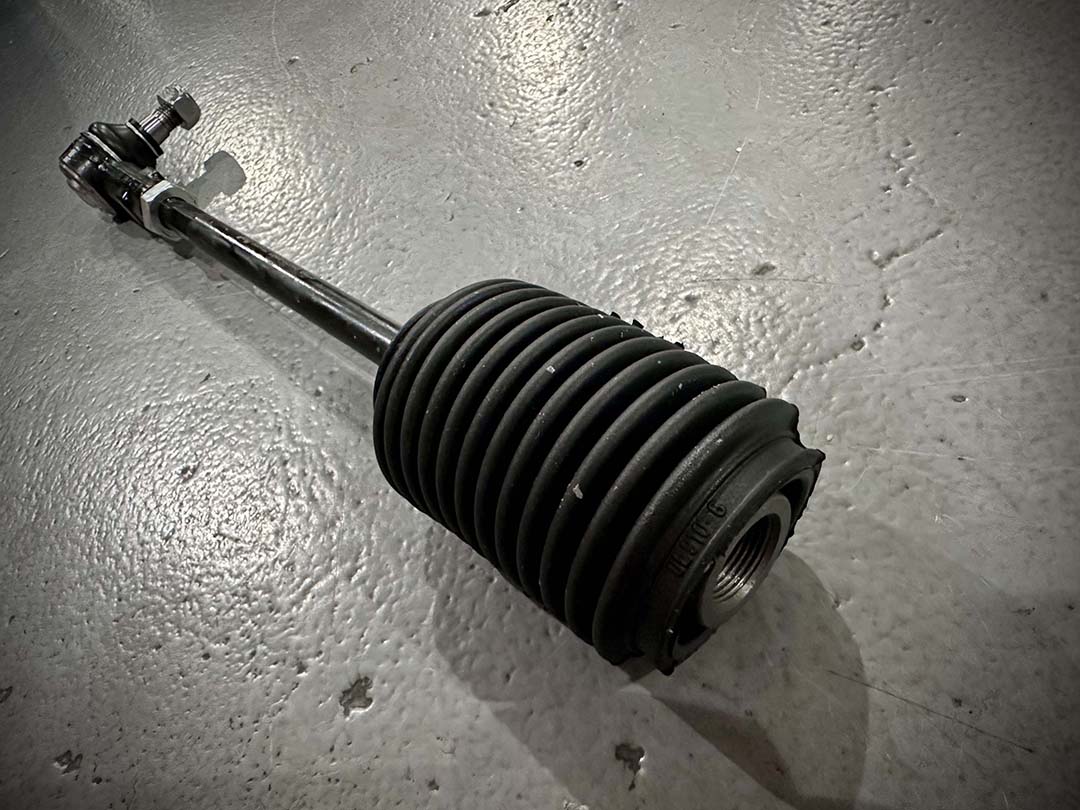

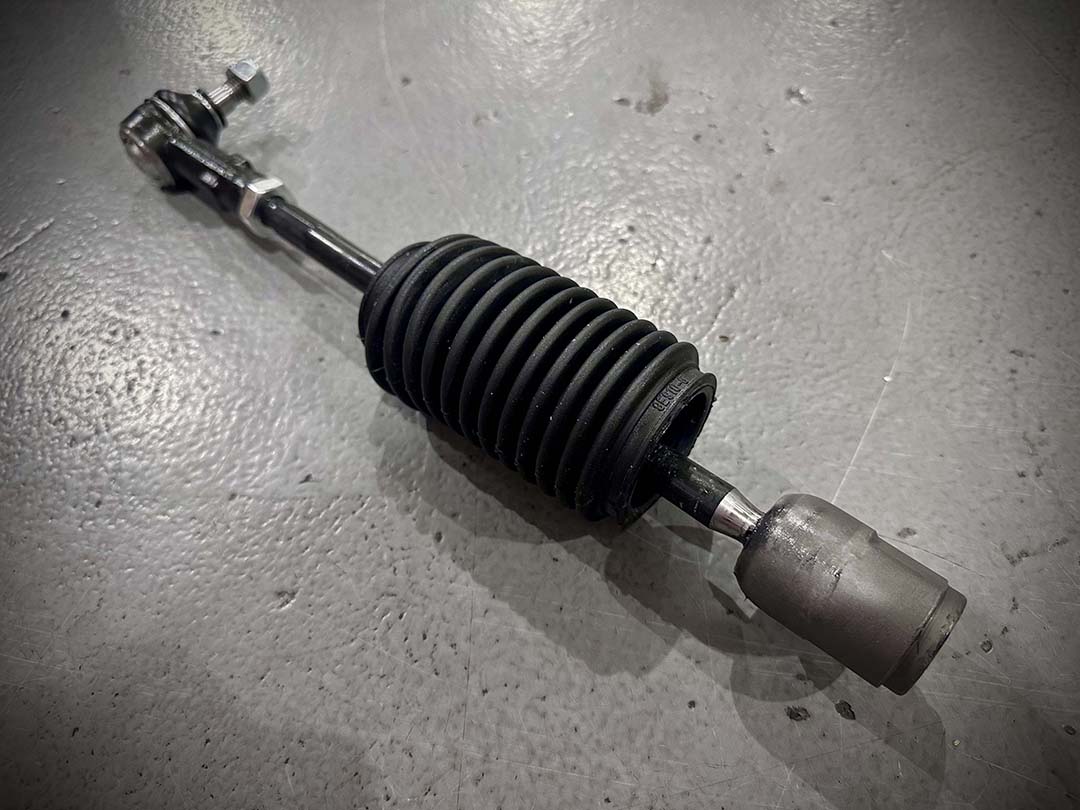

Complete Genuine OES Febi-Bilstein Tie Rod & Boot Assembly kit. This kit comes assembled, with everything you need to replace your worn out components. Also comes with a Febi-Bilstein rack boot that is real rubber, not plastic. PN 171 419 804 / 171419804 comes with the following:

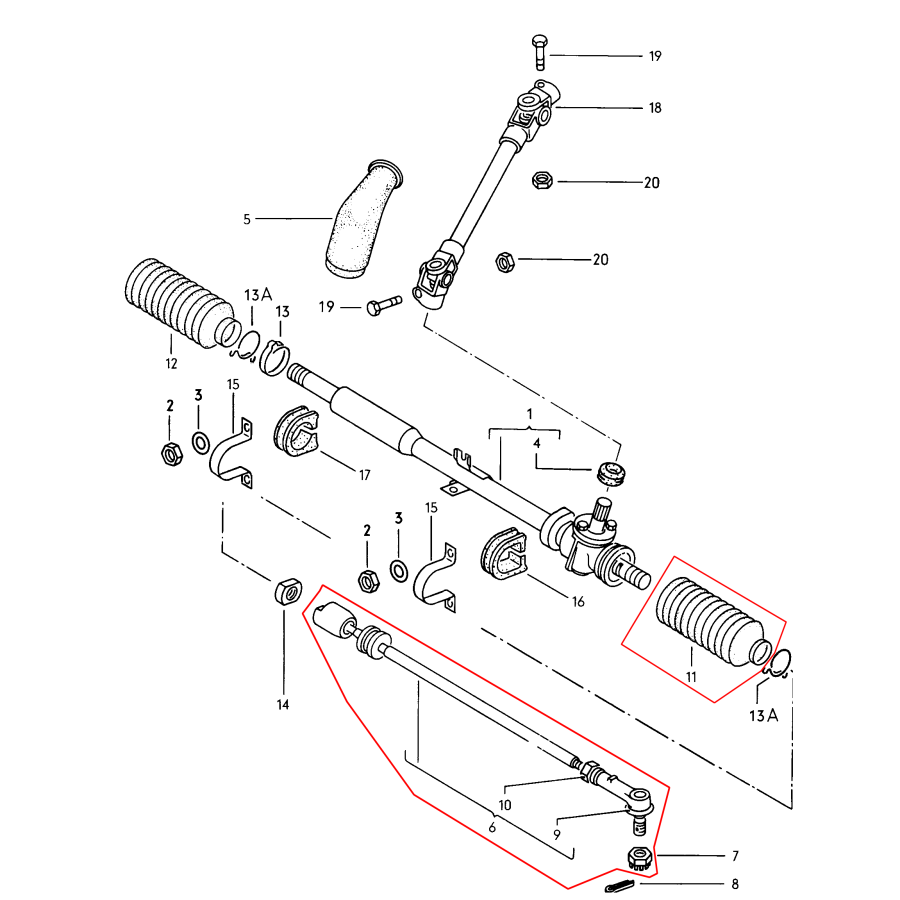

Part Numbers by Diagram
#9 Outer tie rod end – PN: 171 419 812 / 171419812
#6 – Inner Tie Rod (Assembly) – PN: 171 419 804 / 171419804
#10 – Locking Nut – PN: N 0111135 / N0111135
#7 – Ball End Nylock Nut – PN: N 0112122 / N0112122

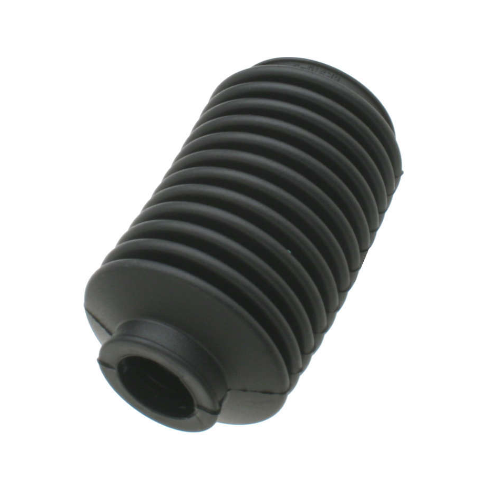

#11 – Tie Rod Boot – PN: 191 419 831 / 191419831
#13A – SS Outer Boot Clamp – 171 419 838 / 171419838 – (Included)
#13 – SS Inner Boot Clamp 47.5mm – 823 419 843 / 823419843 – (Included)
*Note: Part #8 cotter pin is not required for this kit’s application. Part #7 has been superseded to a nylock nut which does not require a cotter pin and is also included with tie rod end.
VERY IMPORTANT

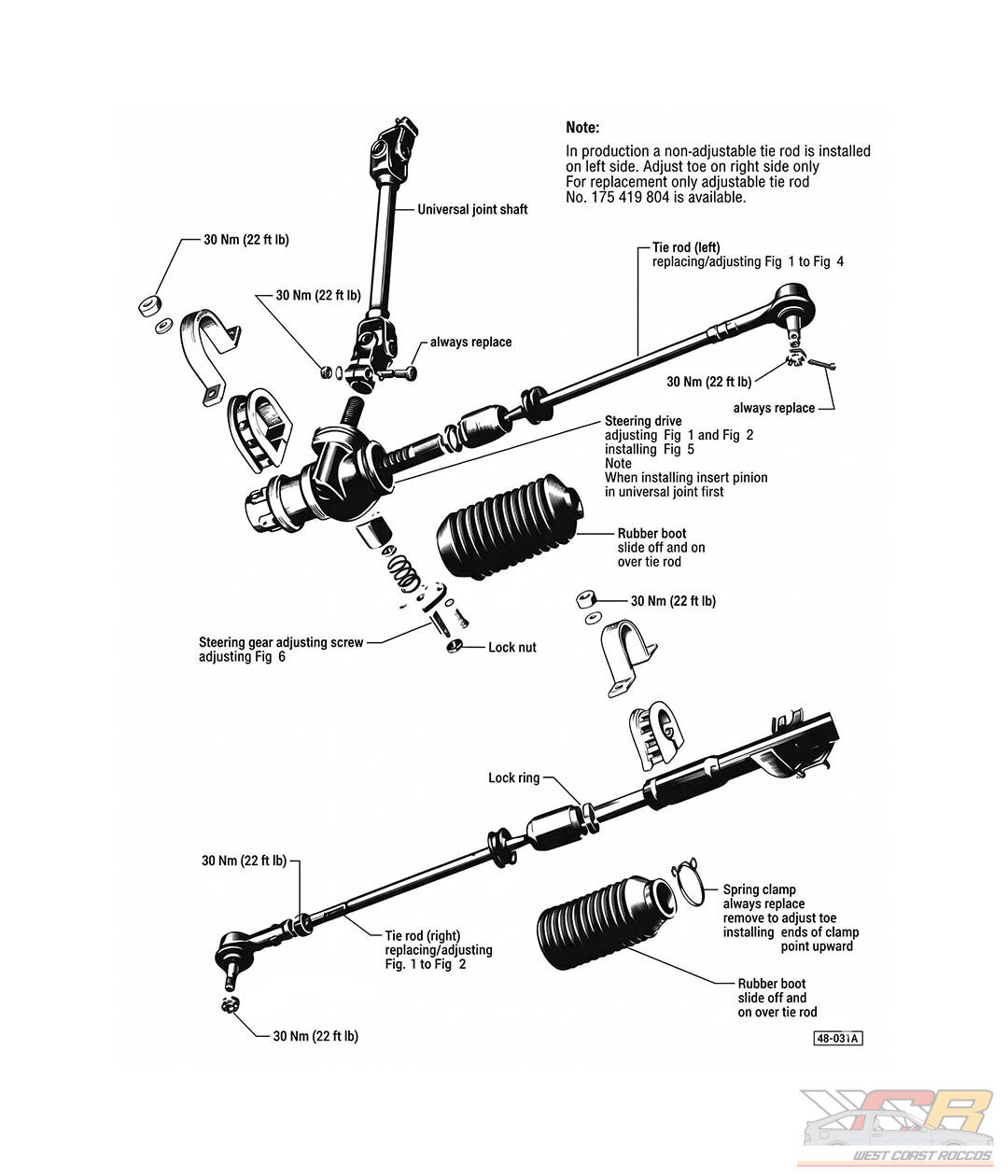

- Despite the diagram – Nylock nuts for M12 x 1.5mm torques to 70nm / 52lbft
- DO NOT USE A IMPACT GUN – YOU MUST HOLD THE END WHILE TIGHTENING
- Use a thin open ended wrench to hold the bottom of the ball joint end to tighten. It should be notched at the bottom
- Some other designed have a hex on the inside center of the threaded area. This entirely depends on the construction of your specfic tie rod end.
- Either way, you must hold the ball joint end while tighten.
- Impact gun will just spin the ball joint and you will not get maximum tightening that way.
Kit Priced Each Side:
1 Rod Kit = Qty 1 Kit
Fits Mk1 & Mk2 w/ Manual Steering Only
Priced Ea Rod / Qty 1 Kit
Requires qty 2 kits per vehicle
Comes with Stainless Steel Crimp Clamp
- Outer – 61.5mm Long x 5mm wide inner clamp (to rack)
- Inner – 47.5 mm outer clamp.(to rod)
What should I buy new Tie Rods?
When it comes to ensuring the performance and safety of your VW Scirocco, investing in new tie rods is essential. Tie rods play a crucial role in the steering system by connecting the steering rack to the wheels. They enable precise steering control, allowing you to navigate the road smoothly. When tie rods wear out, you may experience issues like looseness in the steering wheel, misalignment, or uneven tire wear, negatively impacting your driving experience.
Additionally, new tie rods enhance your vehicle’s overall safety. Worn tie rods can lead to steering failure, increasing the risk of accidents. By replacing them, you ensure that your car handles well, providing better stability and control. New tie rods also improve your VW Scirocco’s response time, giving you confidence while driving.
Furthermore, investing in high-quality tie rods ensures durability and longevity. Properly functioning tie rods contribute to the longevity of other steering components and help maintain the alignment of your vehicle. Don’t compromise on safety or performance; consider purchasing new tie rods for your VW Scirocco today. Enjoy a smoother ride, enhanced steering precision, and peace of mind knowing your vehicle is in top condition.
