Description
Upgraded Hex – Mk2 Scirocco European Headlight Adjsuter Screw Kit
Our Upgraded Hex Head Mk2 Scirocco European headlight adjuster screws replace your rusty and stripped adjusters. These were designed in house and manufactured for West Coast Roccos per Genuine OEM spec Scirocco European Headlight Adjuster Screws.

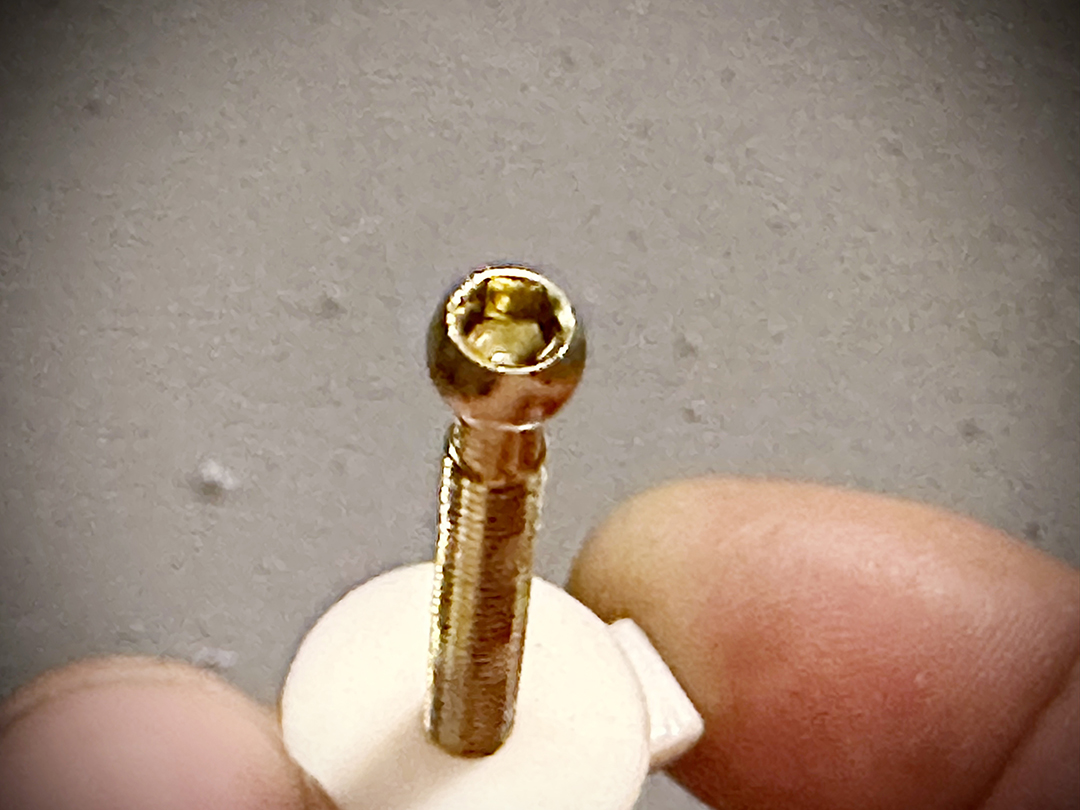

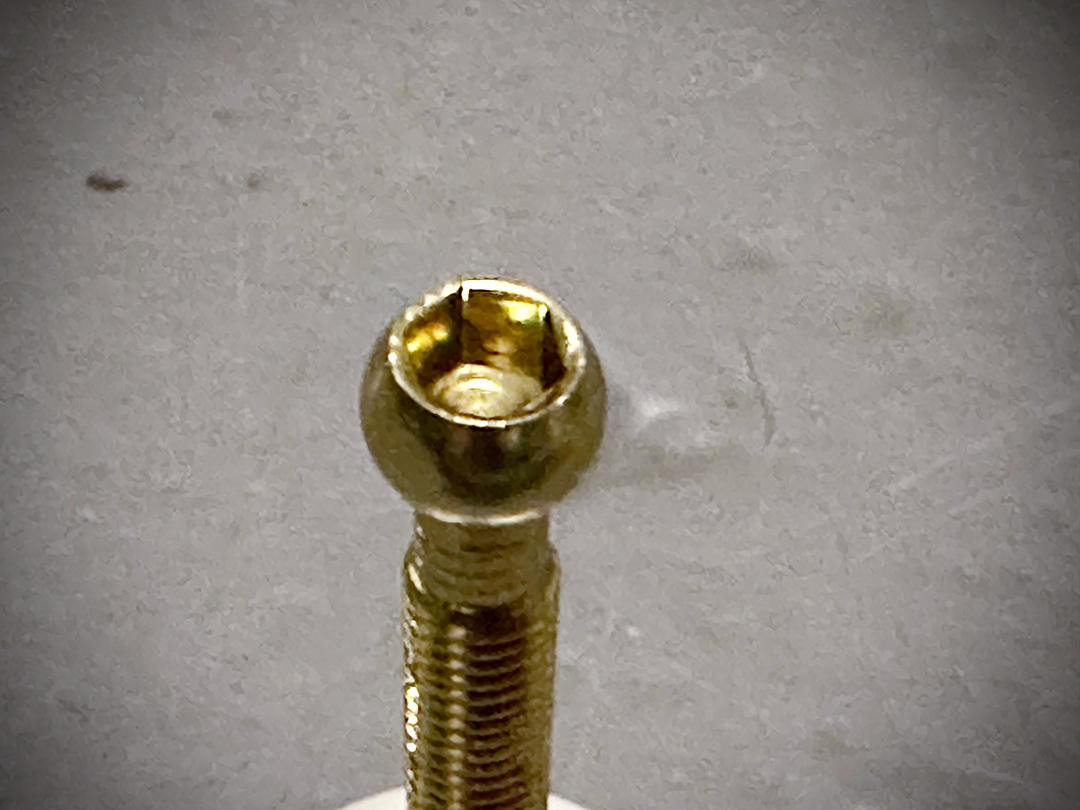

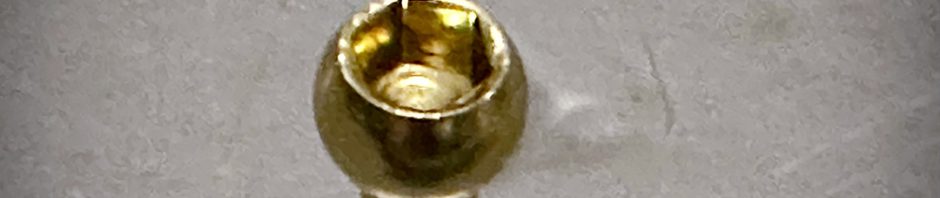

These screws have a 4mm hex end, that allows you to adjust your European Headlights with a solid adjusting tool. No more philips head screw drivers. No more slipping off or stripping the adjuster head. These cusom adjuster screws are zinc and yellow cadmium plated, which will prevent rust over long periods of time.
Please read this entire description before purchasing. There is a lot of information associated with these adjusters in this description.
What Comes in This Kit?
- 3 Long 45mm Low Beam Adjusters – Screws Only
- 3 Short 35mm High Beam Adjusters- Screws Only
Note: 1 of each size is used for the static pivot that is not adjustable. kit comes with a full color install guide. The guide explains how to adjust, assemble, install these upgraded headlight adjusters
Fits Mk2 Scirocco. May also fit Mk1 Jetta, Audi UR Quattro Coupe and other models that use the same headlight adjuster screws. Please measure yours before ordering.
- Audi 100 C4 1990-1994
- Audi 200 1989-1999
- Audi 80 / 90 B4 1991-1996
- Audi A8 D2 1994-1999 Before Facelift
- Audi V8 1989-1994
- VW Caddy Mk1 1983-1992
- VW Golf Cabriolet Mk2 1984-1993
- VW Passat B3 / B4 1990-1994
- VW Scirocco Mk2 1984-1992
INSTALLATION:
Find a flat dry surface with room to spin the headlight housing.- Put a microfiber or soft towel down on the flat surface.
- Place the headlamp face down on the towel.
- Make note of the location of each adjuster screw, pivot mounts, and approx adjustment.
- Remove the OEM mounting clips from the rear headlight bracket. (Pliers work well)
- Remove the OEM pivot clips from the back of the headlamp.
- Put a small amount of lithium or bearingĀ grease on the ball end and wipe any excess off.

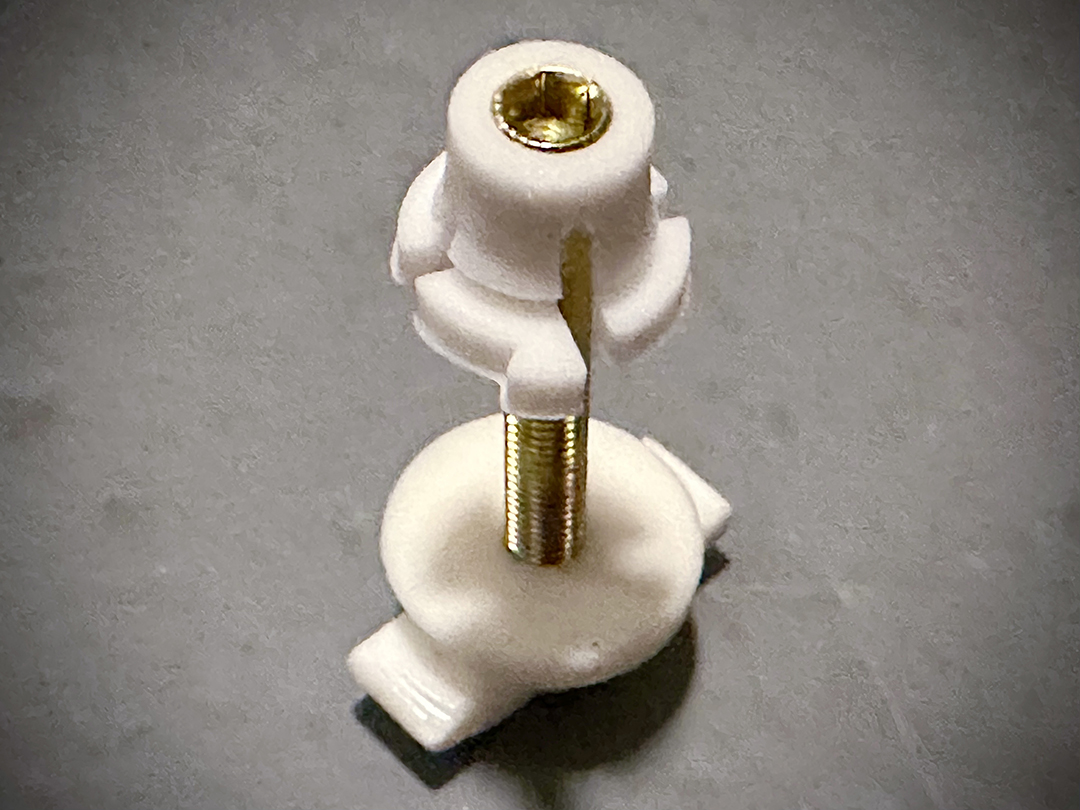

- Place the WRC Mk2 Scirocco European Headlight Adjuster clip open end up on a flat surface and insert the ball end. Press down carefully. You should feel it ‘pop’ into the socket.
- Screw the headlight mounting clips onto the threaded end. Make them all even close to where you noted the OEM clips during disassembly.
- Install the assembled WRC Mk2 Scirocco European Headlight Adjuster on the headlight mounting plate.
- Line up each hole to the ball end clip.
- Press each ball end clip into the headlamp mounting hole very slow. You will hear a click. Do not press any harder
- Continue with the other 5 until they are all installed.
NOTE: Ball End Clips:
When installing, you must insert the ball end screws into the WCR plastic clips prior to installing them into the headlamp bracket. If you try and install the clip first, then try and install the ball end, it will break.
| No. | Part Numbers | Beam Placement & Type | Qty |
|---|---|---|---|
| #7 | 533 941 133 / 533941133 | Low – Mount – 33mm | 1 |
| #8 | 533 941 141 / 533941141 | Low – Adjuster – 43mm | 2 |
| #7A | 533 941 133 A / 533941133A | High – Mount – 33mm | 1 |
| #8A | 533 941 141 A / 533941141A | High – Adjuster – 43mm | 2 |
*Info Scirocco European Headlight Adjuster Screw
*Does not include headlights, headlight bracket, or headlight mounts.

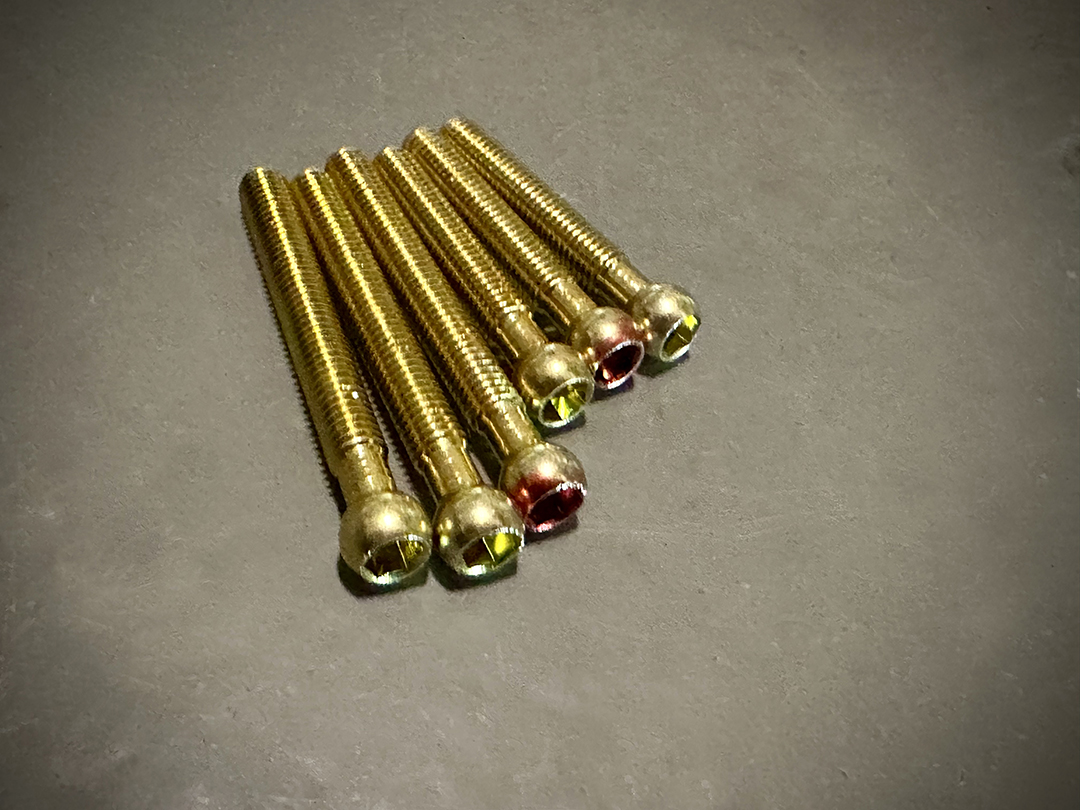

*The short screws are for anchors only, however they do have hex head adjusters on them. Make sure you do not use these for adjusting. They should mount in the same location as the static OEM mounts which are not adjustable. Measure your OEM mounts and make them the same lengths. you must use new adjuster mounts to make these work. Additionally, make note of that by marking the front hex head with a red sharpie or paint pen.
