Scirocco Alignment Specifications
Mk1 & Mk2 Scirocco Alignment Specifications are listed below. These are broken out between 8v and 16v vehicles. Since the weight of the engine is slightly more on the 16v, the front end alignment specs are slightly different. Also below is a conversion chart, in case you or the person performing the alignment has different measurements. Furthermore, most alignment machine have these specs loaded into the machine from the factor. Older machines typically do not.

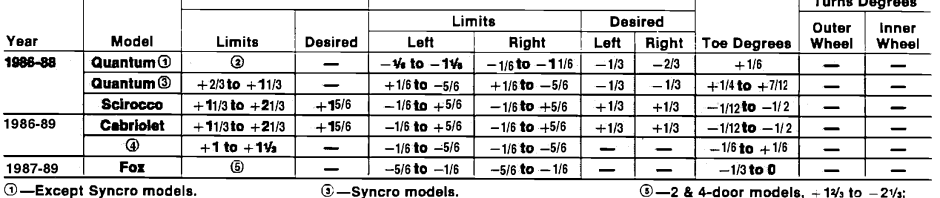

1986-1/2 to 1992 – Mk2 16v Scirocco Specifications
1975-1988 – Mk1 & Mk2 8v Scirocco Specifications
Volkswagen Technical Service Bulletin (TSB) – Group: 44 – Number: 91-05
Date: August 31, 1991
Subject: Conversion Chart for Mk1 & Mk2 Scirocco Alignment Specifications
Model(s): All models
Because of differences in various alignment machines, different types of measurement readings exist in the field.
As a rule, Toe-in and Camber are given in angular degrees. For example, alignment machines display figures for the Toe-in in fractions of an inch or decimal inches or in millimeters. Additionally, the equivalent angular degrees can easily be obtained from the tables.
CONVERSION CHART FOR TOE-IN DIMENSIONS
Note: Toe-in degree values on the chart, round off to the second decimal place.
Additional Conversion Charts
To eliminate the confusion about converting specifications from degrees/minutes to degrees decimal. Fractional inches to decimal inches and metric (mm) equivalents, use the conversion charts.
