Description
Bullet Proof 020 5 Speed Shifter Relay Lever

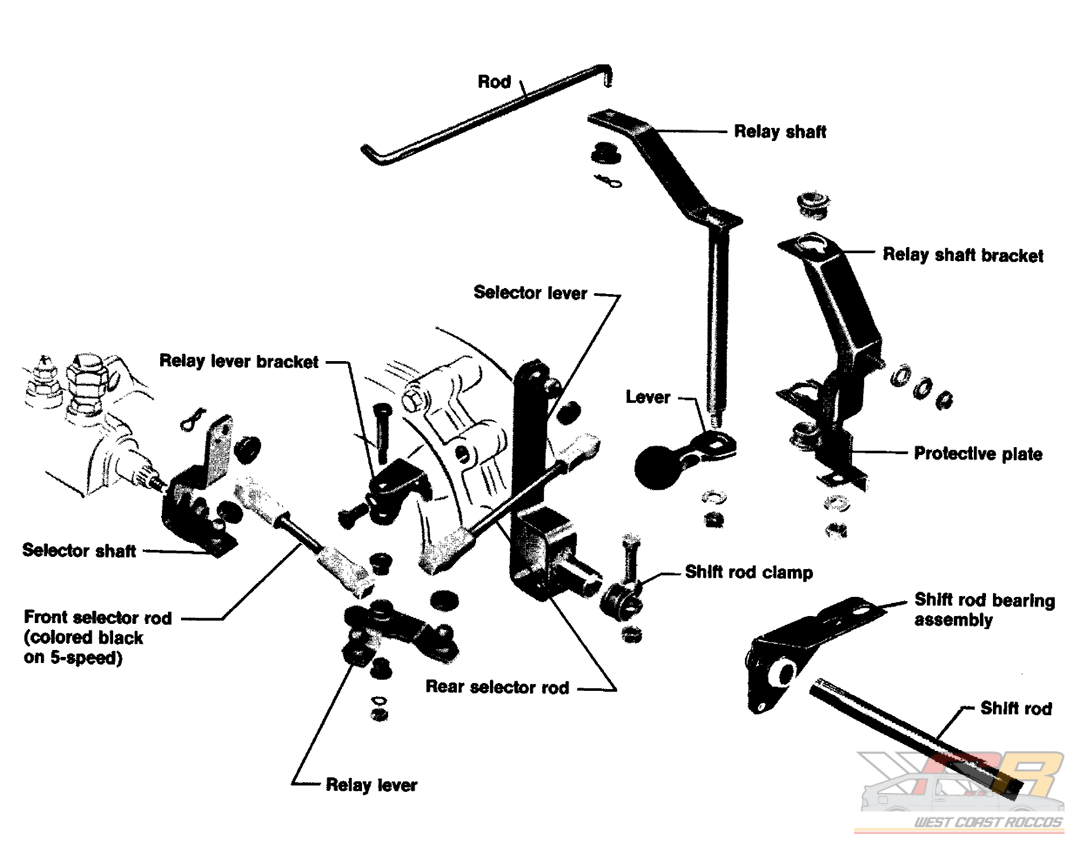

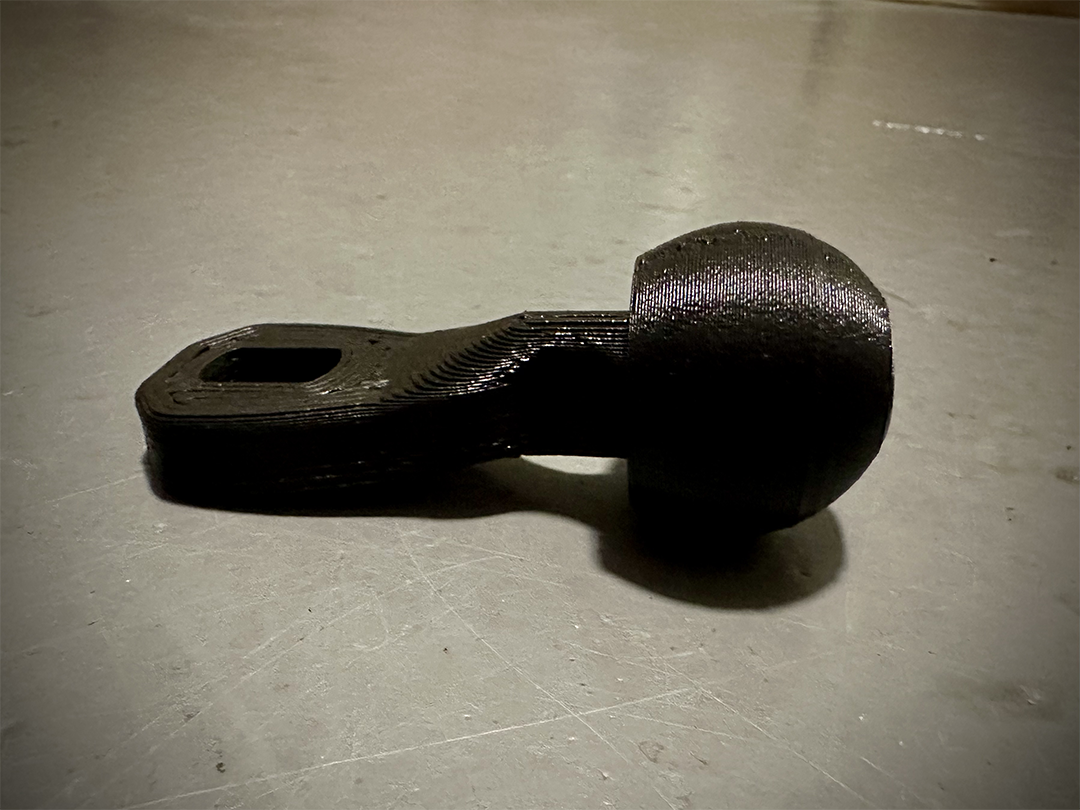

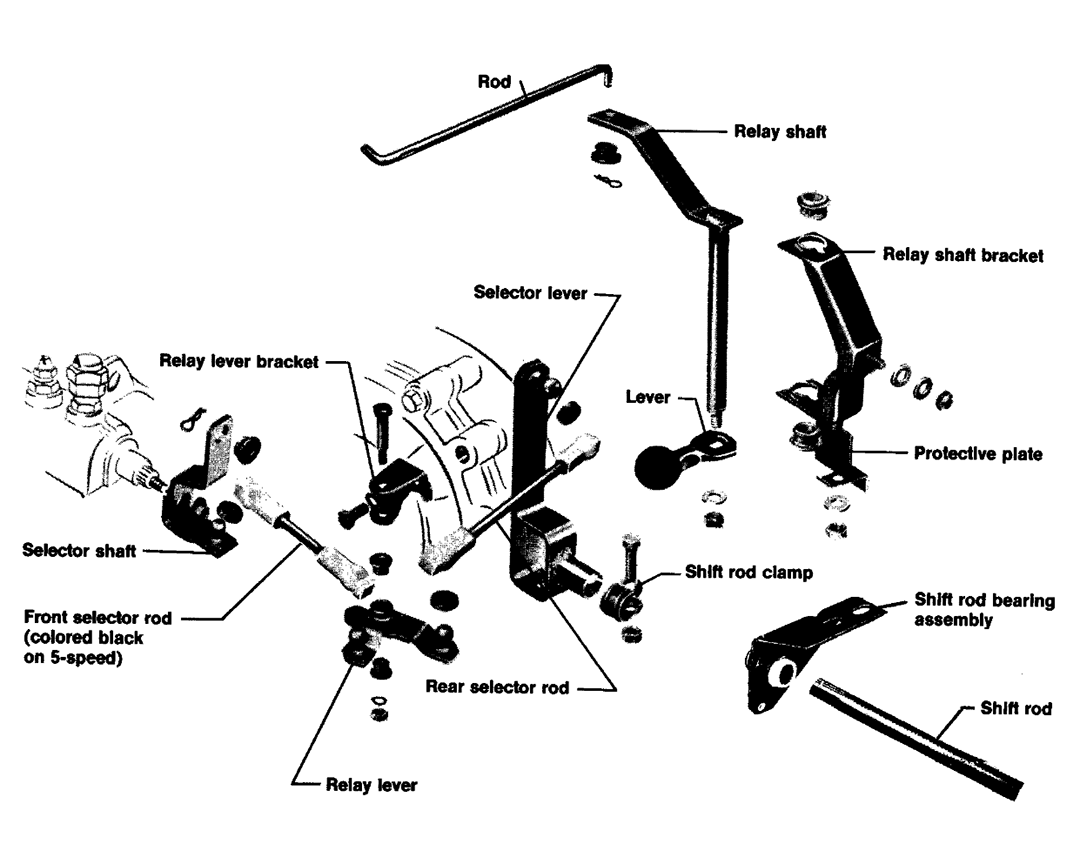

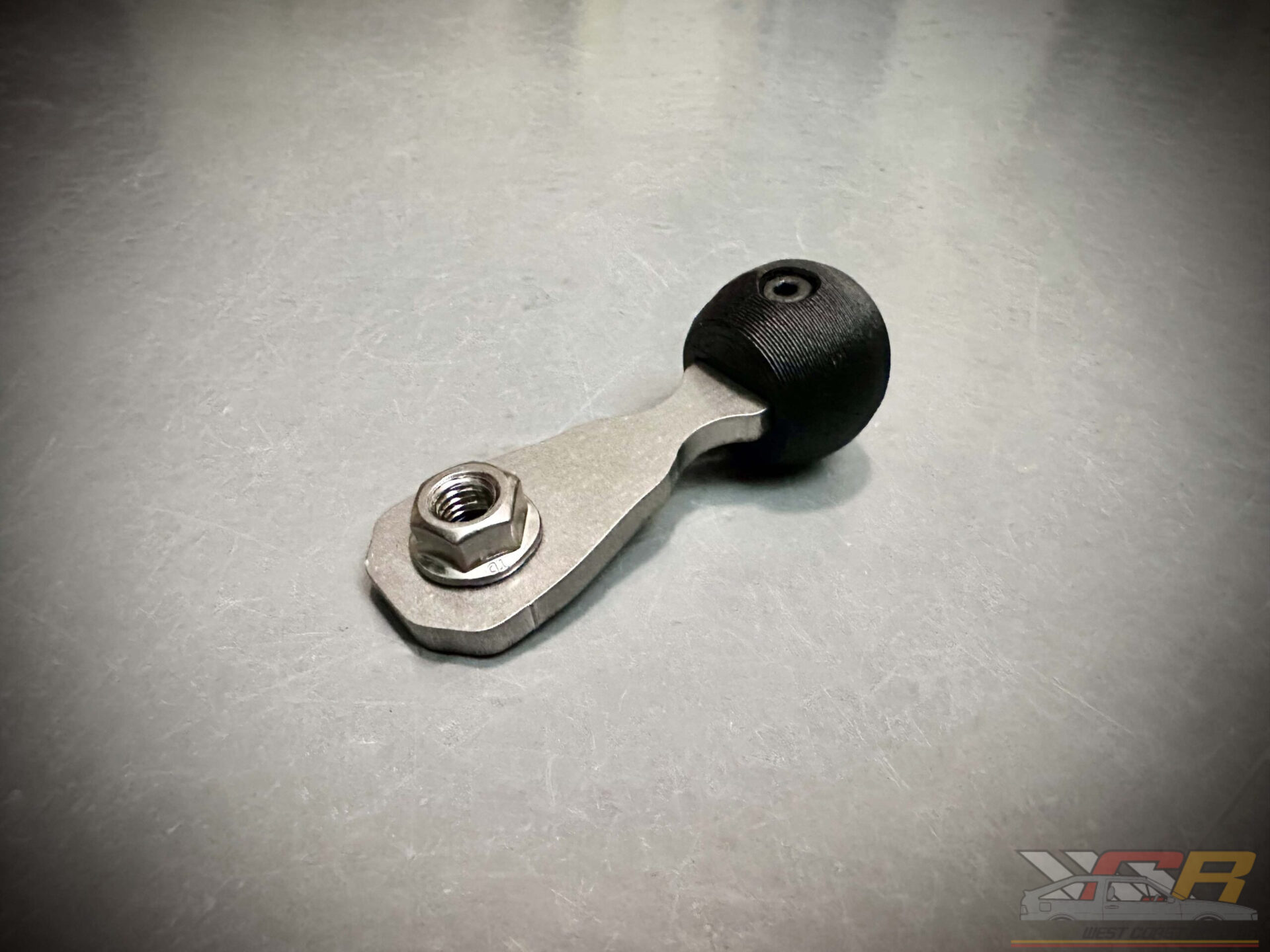

WCR Bullet Proof Shifter Relay Lever for the shift linkage is made from Polycarbonate Carbon Fiber (PC-CF). Designed and manufactured in house at WCR North. These fit Mk1 & Mk2 Scirocco 5 speed 020 shift linkage. They also fit any A1 platform with a 020 5 speed. See list below for your application. Does not fit 4 speed transmission. Rebuildable ball ends are also available.
How it’s made
The PC-CF construction has a much higher wear resistance than the OEM rubber relay lever. Furthermore, the PC-CF has a much lower friction coefficient. This material allows the ball end to glide much easier than the OEM rubber. Another aspect of the PC-CF relay lever is that it is very light weight and is extremely high strength. Lastly, ouf PC-CF material has very high thermal resistance up to 200ºc / 392ºf. This requires special equipment that WCR has invested in to be able to make products like this for our customer. As polycarbonate is used in bullet proof glass, we’ve branded this as bullet proof.

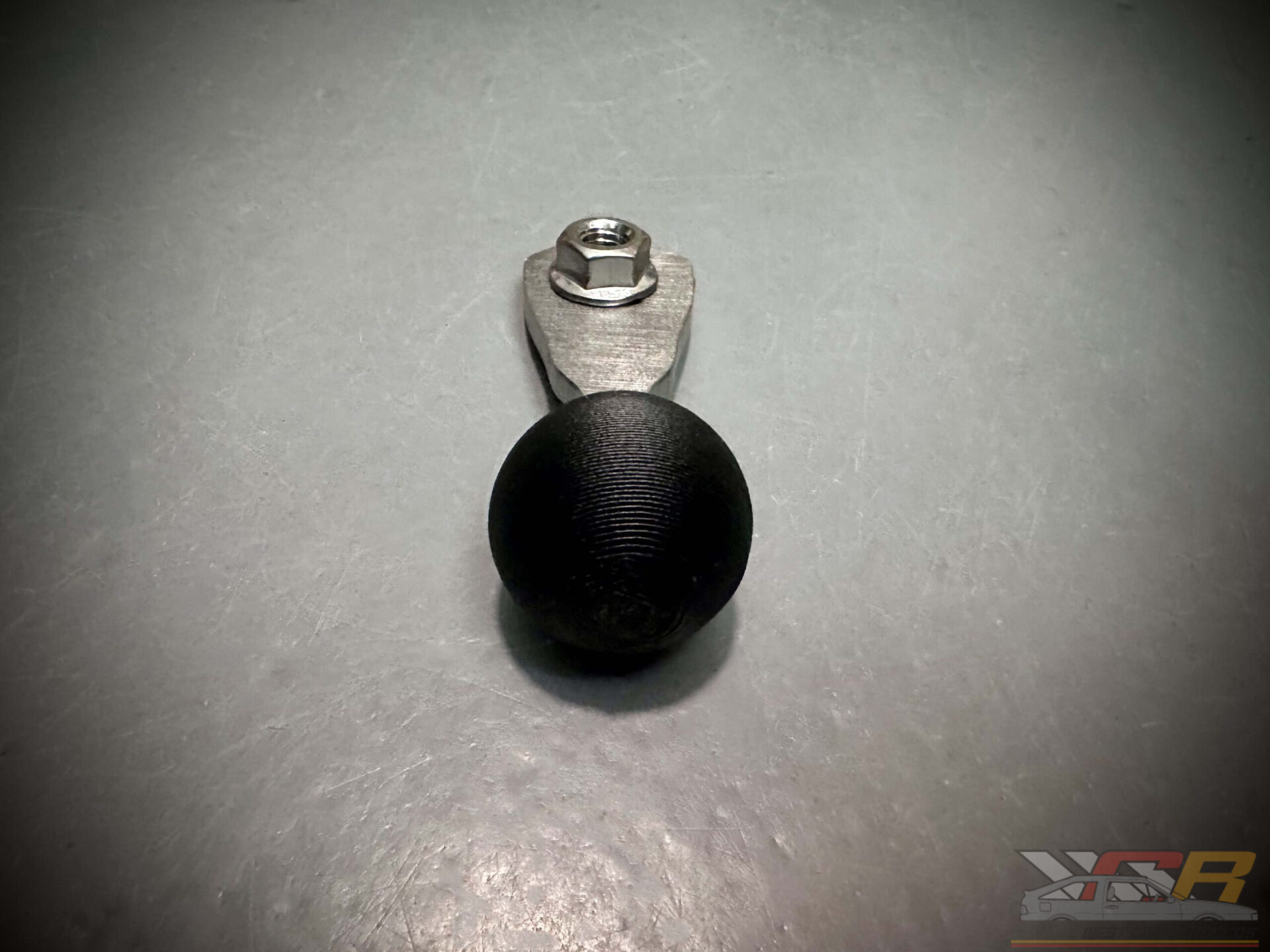

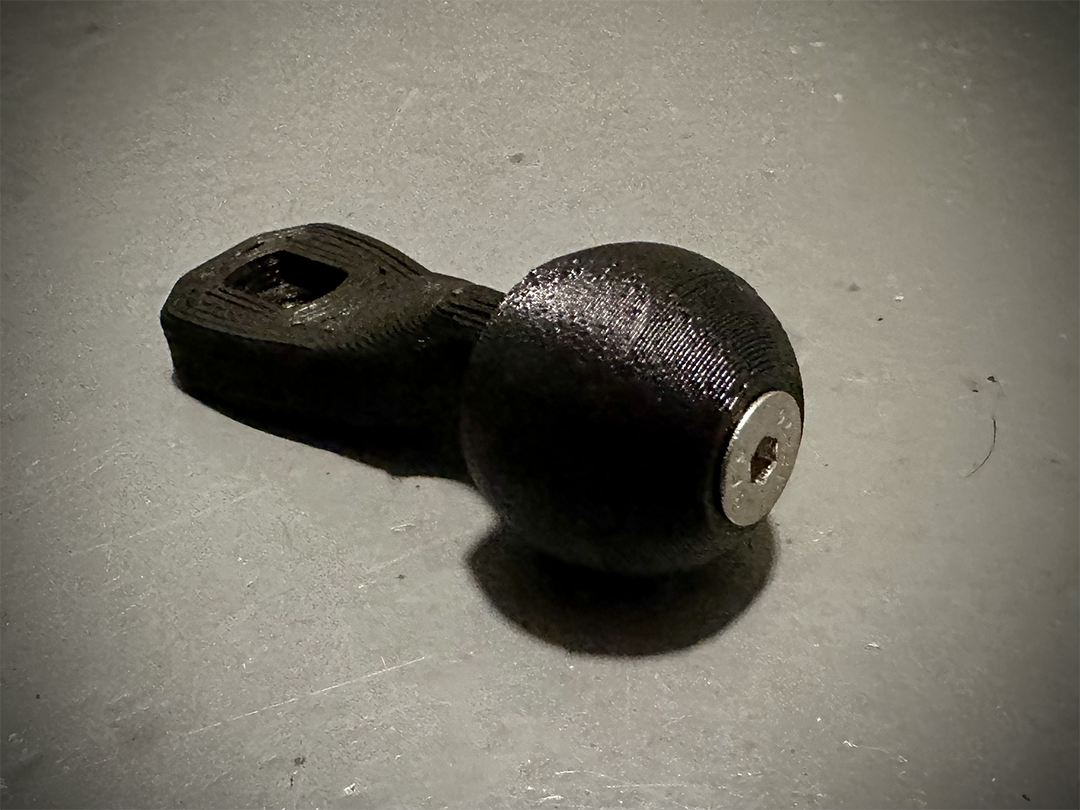

Note: This is V1.0. V2.0 is in the product photos has a rounder ball end.
*Installation & Kit Info

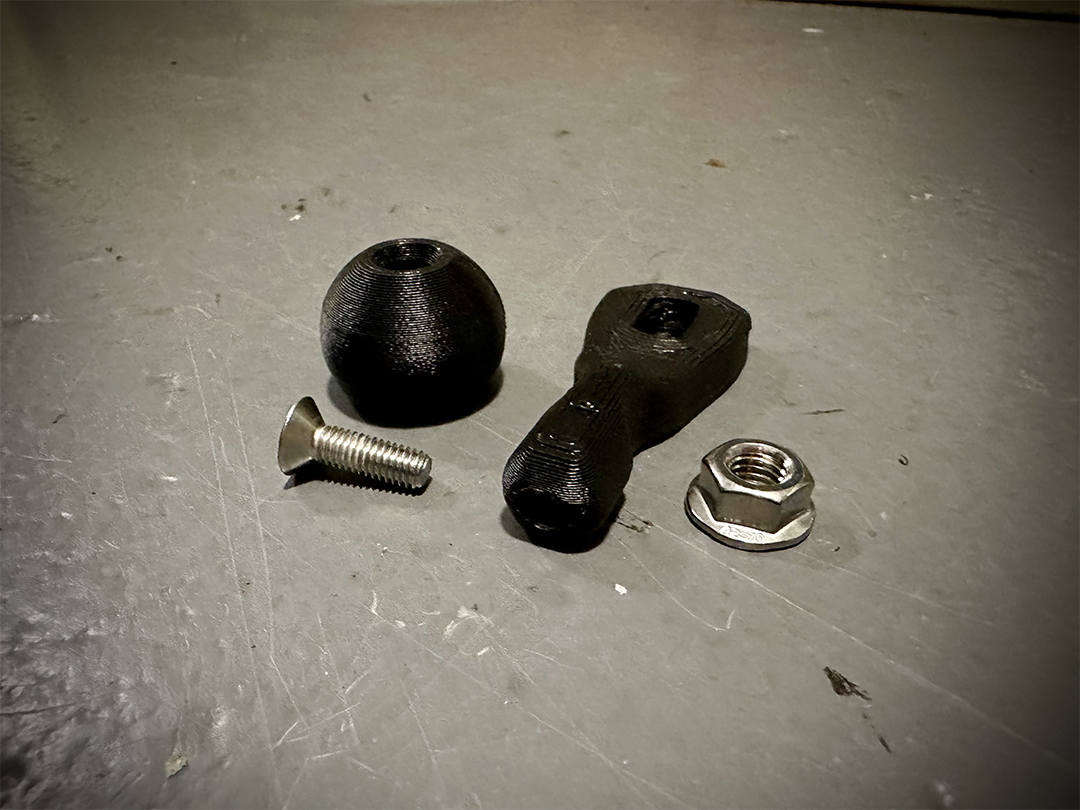

- The kit comes with 4 pieces.
- Lever arm

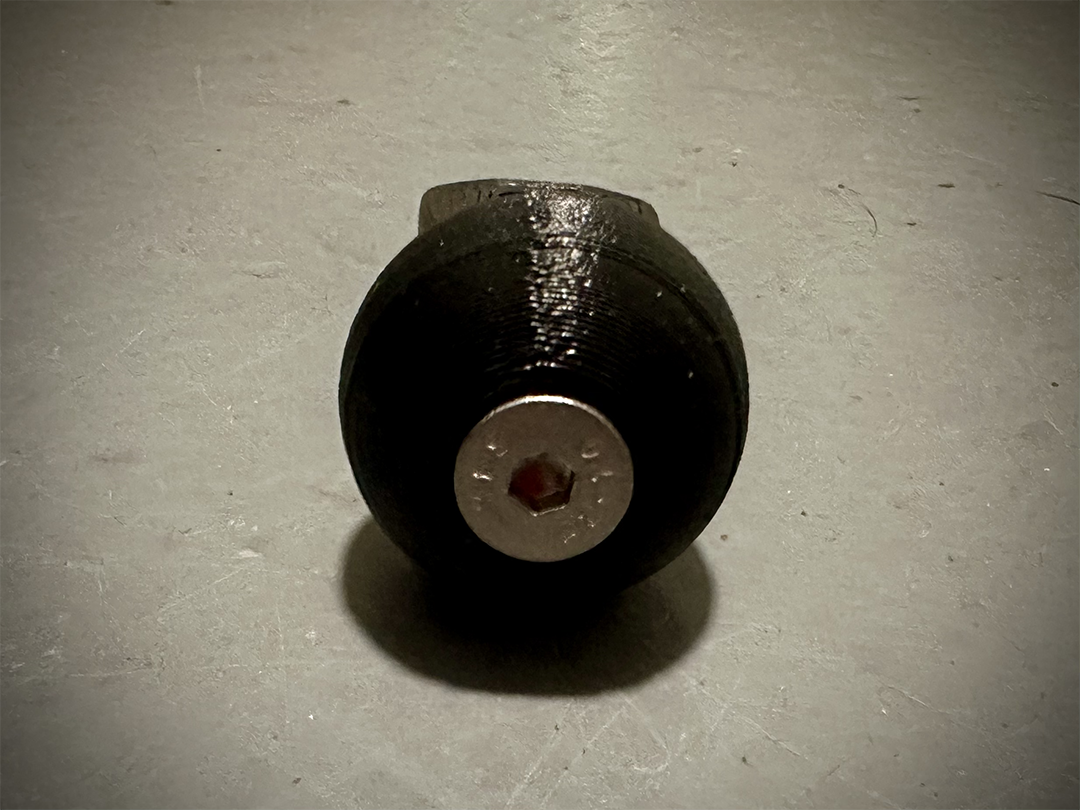

- Ball end
- SS ball end set screw
- SS Serrated flange nut.

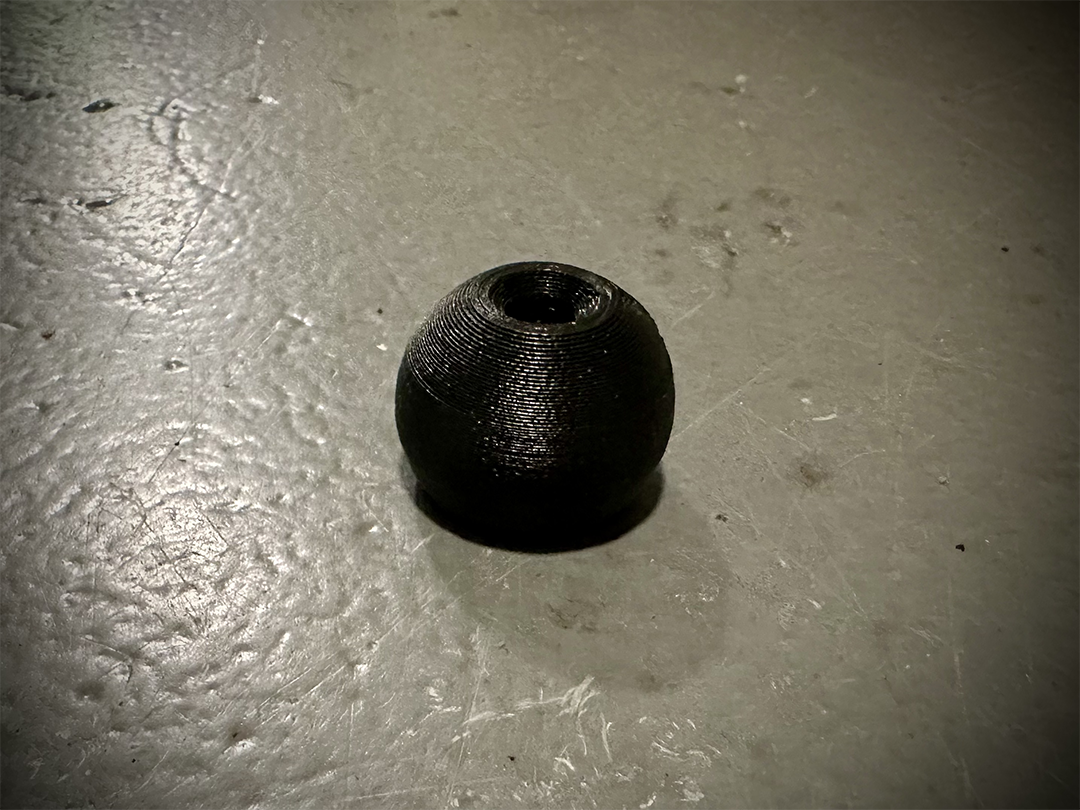

- The ball end replacement comes with 1 ball alone.
- You must purchase the kit in order to use the ball end.
- The ball end will not work with the factory lever.
- WCR offers a lifetime warranty* on this shifter relay lever.

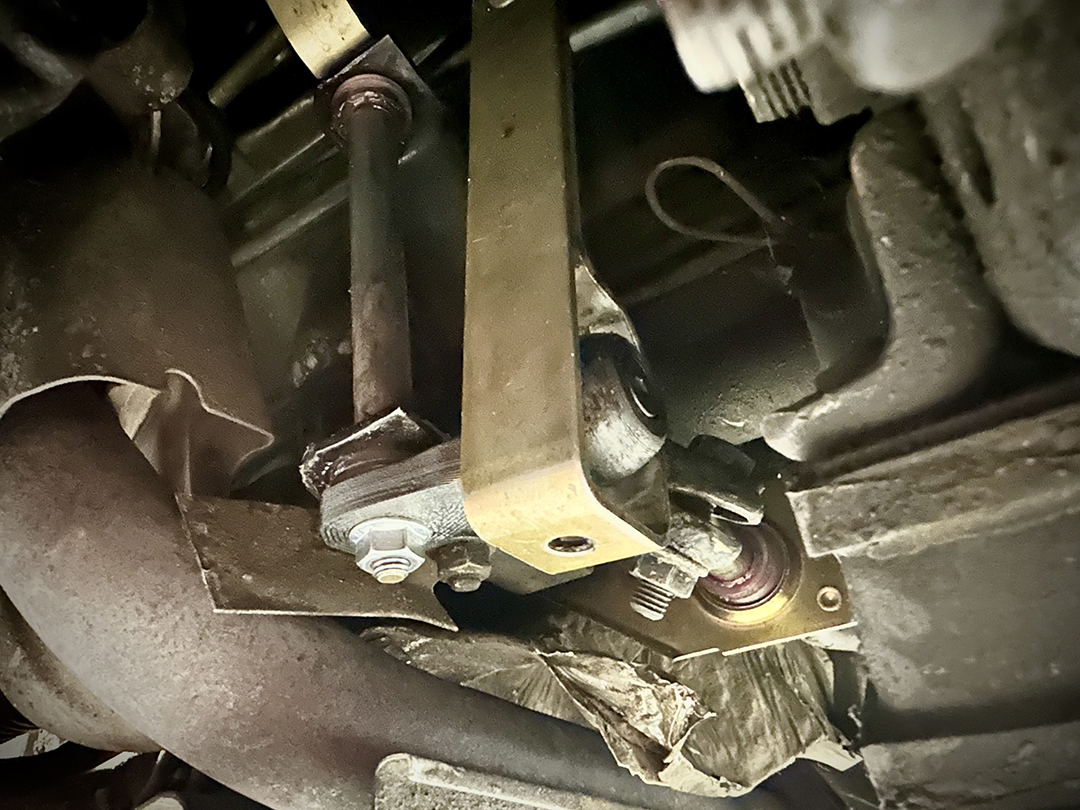

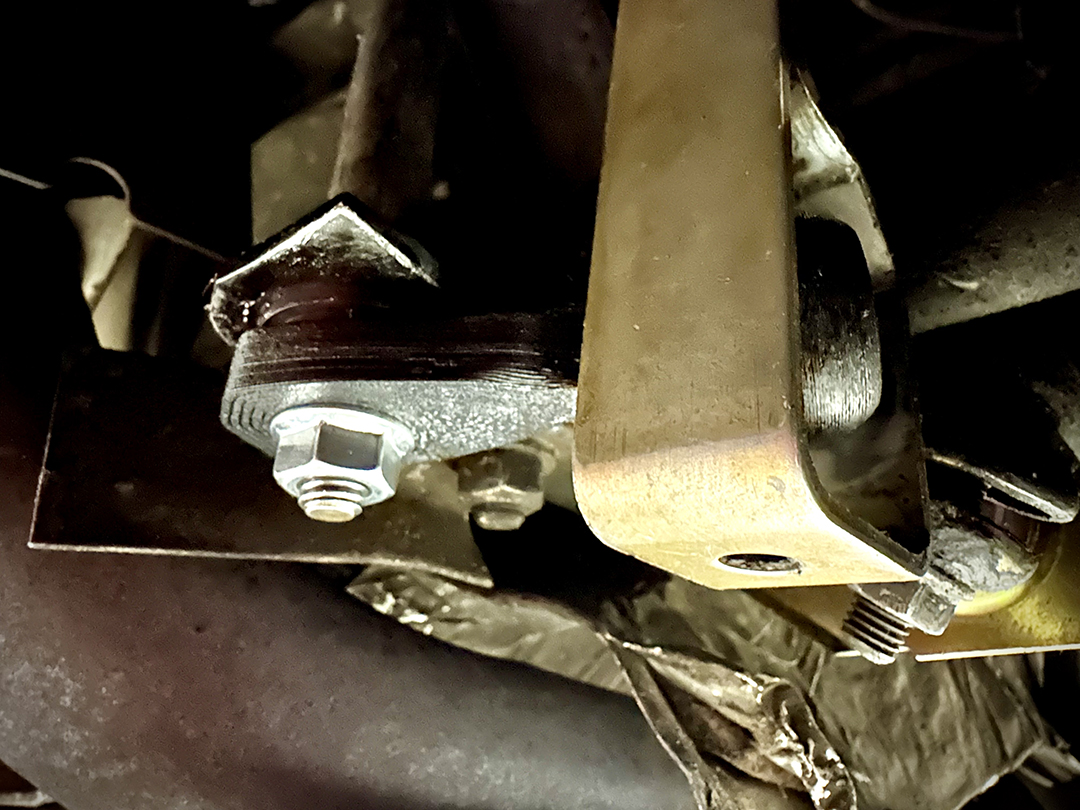

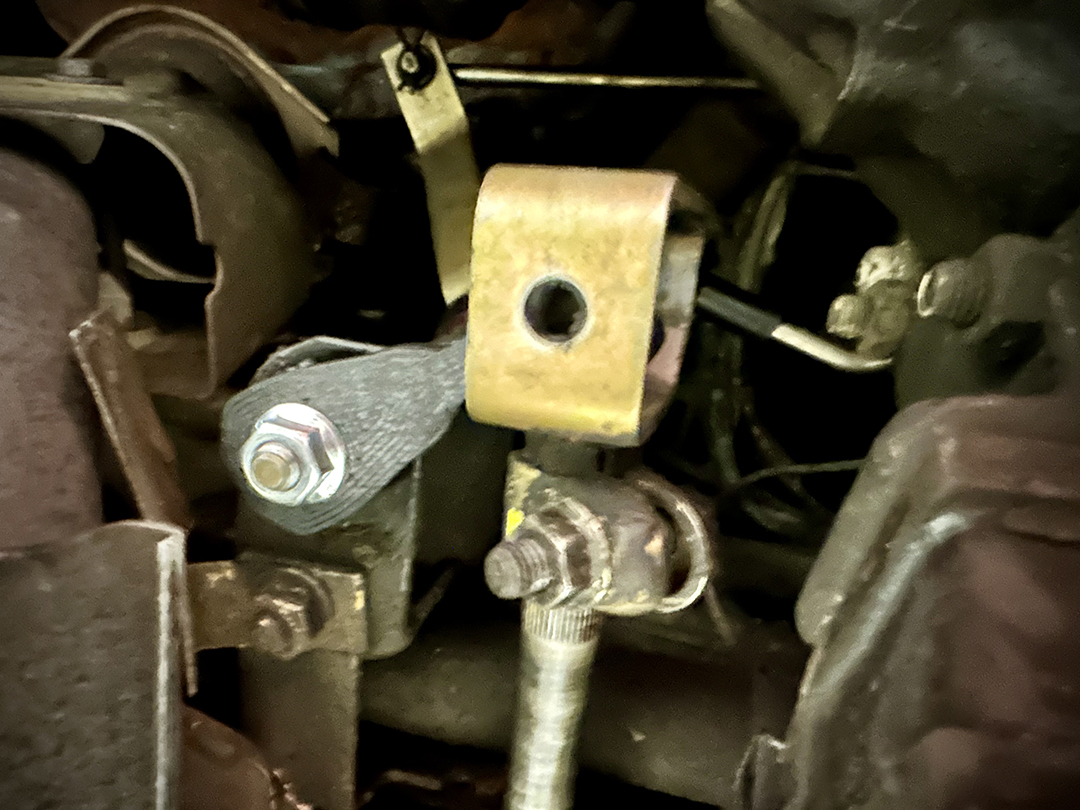

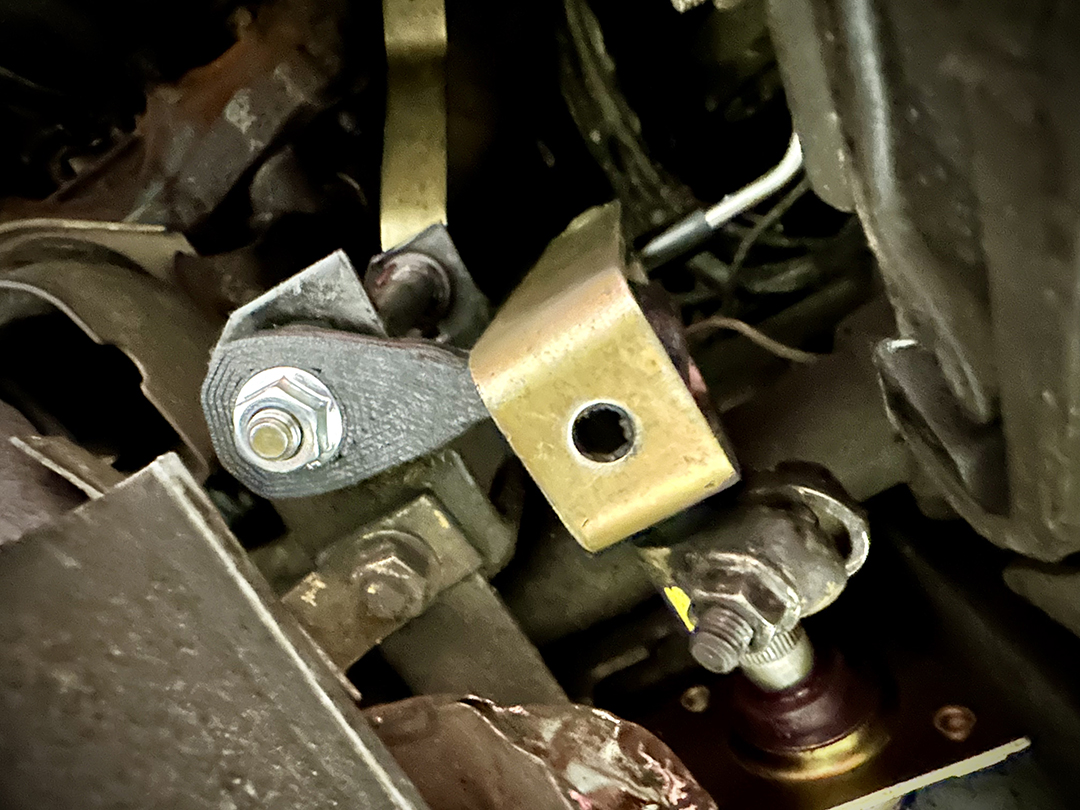

- Before installing, lube the ball end with a thin coat of light weight bearing or lithium grease.

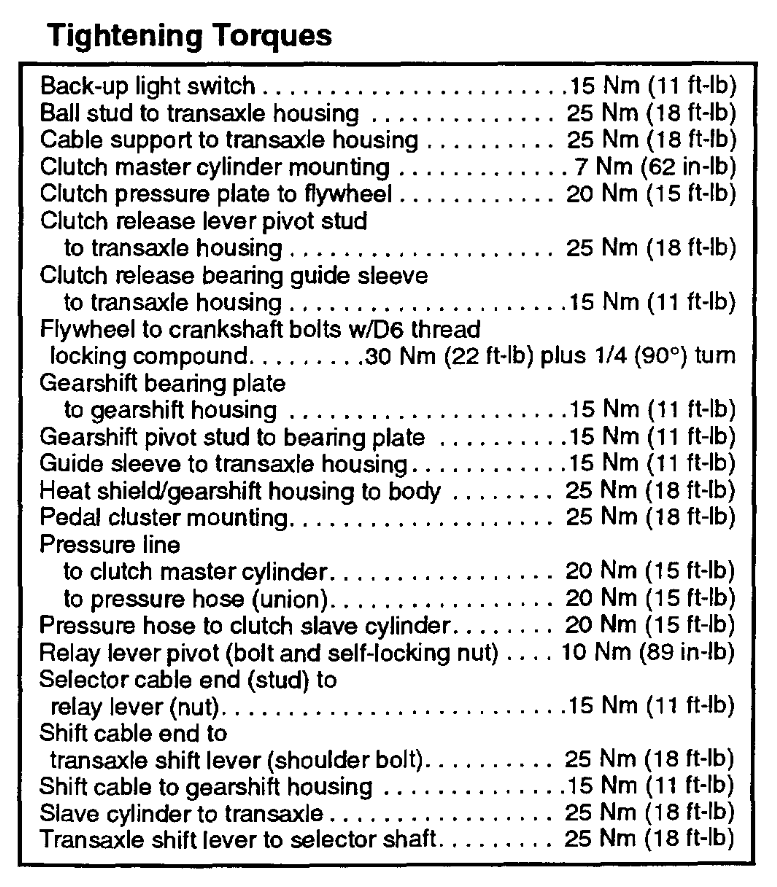

>>>>> Torque to 10nm or 89 Inch Lbs <<<<<
- DO NOT over tighten or you WILL break your relay shaft mount.
-
-
-
- Over tightening is not covered under warranty*. We will replace if any other failure occurs, however we will not issue refunds*.
- Over tightening will deform the mounting bracket causing the internal locking oval to rotate and it WILL break. The serrated nut will lock into place when tightening to the proper torque.
- We highly recommend replacing all the shift linkage bushings. If there is any tension in your shifter, you also need a linkage rebuild kit.
- DO NOT use power tools, such as electric or air powered impact guns or ratchets when removing or installing the nut. This WILL also break your relay shaft threads. – (Don’t ask how we know this)
-
-
- Fits Mk1 & Mk2 Sciroccos w/ 5 speed 020 transmission.
- Note: Replacement ball ends do not fit OEM metal lever arms. If you purchased one to try and replace your rubber ball end, it will fall off and you will have to purchase the entire kit. Lever arms are not sold separately.
Replaces PN: 171 711 163 E / 171711163E
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1985 | 1 | |||
| 1986 | 1 | |||
| 1987 | 1 | |||
| 1988 | 1 | |||
| 1989 | 1 | |||
| 1990 | 1 | |||
| 1991 | 1 | |||
| 1992 | 1 | |||
| 1993 | 1 |
Mk1 Jetta
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1980 | 1 | |||
| 1981 | L4 1.6L | 1 | ||
| 1981 | L4 1.7L | 1 | ||
| 1982 | L4 1.6L | 1 | ||
| 1982 | L4 1.7L | 1 | ||
| 1983 | L4 1.6L | 1 | ||
| 1983 | L4 1.7L | 1 | ||
| 1984 | L4 1.6L | 1 | ||
| 1984 | L4 1.7L | 1 | ||
| 1984 | L4 1.8L | 1 |
VW Mk1 Rabbit
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1975 | 020 5 Speed | 1 | ||
| 1976 | 020 5 Speed | 1 | ||
| 1977 | 020 5 Speed | 1 | ||
| 1977 | 020 5 Speed | 1 | ||
| 1978 | 020 5 Speed | 1 | ||
| 1979 | 020 5 Speed | 1 | ||
| 1980 | 020 5 Speed | 1 | ||
| 1980 | 020 5 Speed | 1 | ||
| 1980 | 020 5 Speed | 1 | ||
| 1981 | 020 5 Speed | 1 | ||
| 1981 | 020 5 Speed | 1 | ||
| 1982 | 020 5 Speed | 1 | ||
| 1982 | 020 5 Speed | 1 | ||
| 1983 | 020 5 Speed | 1 | ||
| 1983 | 020 5 Speed | 1 | ||
| 1983 | 020 5 Speed | 1 | ||
| 1984 | 020 5 Speed | 1 | ||
| 1984 | 020 5 Speed | 1 | ||
| 1984 | 020 5 Speed | 1 |
Rabbit Convertible / Rabbit Pickup / Caddy
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1980 | 1 | |||
| 1981 | 1 | |||
| 1982 | 1 | |||
| 1983 | 1 | |||
| 1984 | 1 |
Mk1 & Mk2 Scirocco 8v & 16v
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1975 | 020 5 Speed | 1 | ||
| 1976 | 020 5 Speed | 1 | ||
| 1977 | 020 5 Speed | 1 | ||
| 1978 | 020 5 Speed | 1 | ||
| 1979 | 020 5 Speed | 1 | ||
| 1980 | 020 5 Speed | 1 | ||
| 1981 | 020 5 Speed | 1 | ||
| 1982 | 020 5 Speed | 1 | ||
| 1983 | 020 5 Speed | 1 | ||
| 1984 | 020 5 Speed | 1 | ||
| 1985 | 020 5 Speed | 1 | ||
| 1986 | 020 5 Speed | 1 | ||
| 1987 | 020 5 Speed | 1 | ||
| 1988 | 020 5 Speed | 1 | ||
| 1989 | 020 5 Speed | 1 |
* Warranty covers the shifter relay lever arm only. Does not cover over tightening of nut. Direct replacement will be provided, no refunds.
* Ball end is considered a wear item. Replacement ball ends can be purchased separately.
