In Tank Fuel Pump Hose – Submersible

$15.99$18.99

Internal Tank Fuel Pump Hose – Submersible

SKU: OES_533-270-930_INTERNAL-FUEL-HOSE Categories: ,

Description

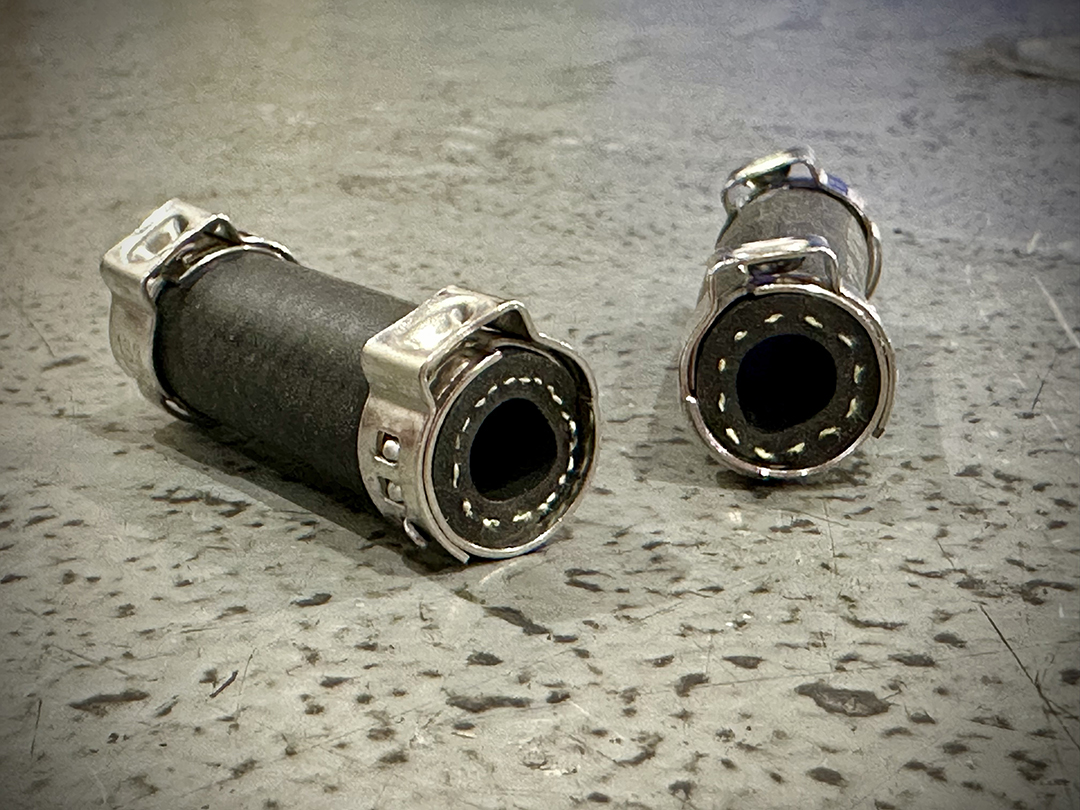

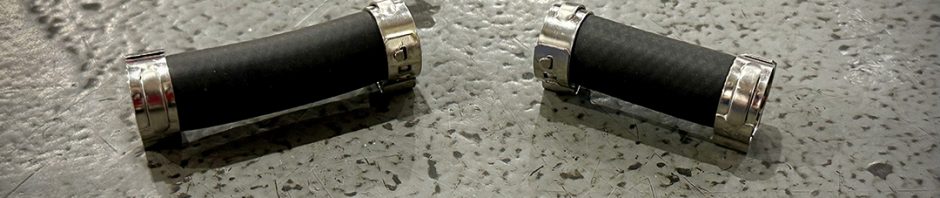

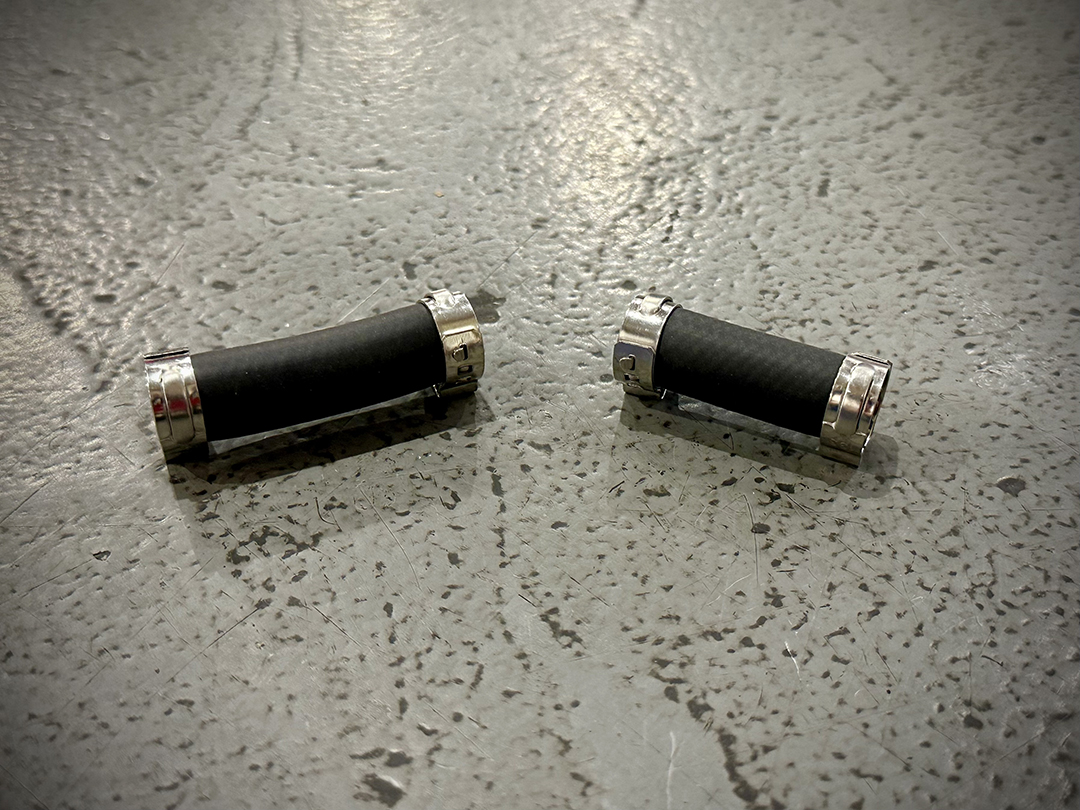

Submersible Fuel Pump Hose

In Tank Fuel Pump Hose replacement is necessary when replacing the internal fuel pump on your Scirocco. This is a specialized hose that is mean for being submerged in fuel – NORMAL FUEL LINE WILL NOT WORK. If you use regular fuel hose it will swell, crack, then start sucking air within a matter of weeks. This hose connects the fuel tank sending unit to the internal tank fuel pump. Made by VW’s OES manufacturer. Even if your line connector looks ‘ok’, they may still need replaced. So, you might as well do it while the pump is out.  Also, replacing this will help symptoms such as hesitation, hard starts and starved fuel issue when cornering hard.

Measure your hose before ordering
Requires Stainless Steel or Nylon  Hose Clamps*



SPECS:


Fuel Line: 8mm ID x 2.5mm Wall x 13.9mm OD / ±.5mm – (OEM Spec)
Rating: 400PSI
Burst Pressure: 1400psi
Temperature Rating: -40ºF to 270ºF / -40ºc to 132ºc
Internally Kevlar Braided Hose – OES Manufactured by Continental

Replaces Part Numbers:
533 919 133 B / 533919133B – 38mm
533 919 133 / 533919133 – 38mm
281 919 133 / 281919133 – 48mm

Fits Mk2 Sciroccos – 8v & 16v
NOTE: Can be used in Mk1 Scirocco tanks w/ pick up tubes for carburetors or converting your Mk1 to a later style injection such as 16v swaps.

Also fits the following vehicles:

Volkswagen (VW) Cabrio/Cabriolet 1989, 1990, 1991
Volkswagen (VW) Cabrio/Cabriolet 1.8L 1992, 1993
Volkswagen (VW) Cabrio/Cabriolet 1.8L K-Jetronic 1984, 1985, 1986, 1987, 1988
Volkswagen (VW) Scirocco 1986, 1987
Volkswagen (VW) Scirocco 1.8L K-Jetronic 1984, 1985
Volkswagen (VW) Scirocco 1.8L KE-Jetronic 1988, 1989
Volkswagen (VW) Cabrio/Cabriolet 1989, 1990, 1991
Volkswagen (VW) Cabrio/Cabriolet 1.8L 1992, 1993
Volkswagen (VW) Cabrio/Cabriolet 1.8L K-Jetronic 1984, 1985, 1986, 1987, 1988
Volkswagen (VW) Corrado 1991
Volkswagen (VW) Corrado 1.8L G60 1989, 1990
Volkswagen (VW) Corrado 2.8L 6 Cylinder 1992, 1993, 1994, 1995
Volkswagen (VW) Golf 1989, 1990, 1991, 1992
Volkswagen (VW) Jetta 1989, 1990, 1991, 1992
Volkswagen (VW) Passat 1991, 1992, 1993, 1994
Volkswagen (VW) Passat 2.0L 1990
Volkswagen (VW) Scirocco 1986, 1987
Volkswagen (VW) Scirocco 1.8L K-Jetronic 1984, 1985
Volkswagen (VW) Scirocco 1.8L KE-Jetronic 1988, 1989



*Stainless steel hose clamps are an additional cost.

Additional information

Weight .25 lbs
Dimensions 6 × 6 × 1 in
Part Number / Length

533919133 / 533919133B – 38mm, 281919133 – 48mm
