Description
Genuine Gauge Cluster Voltage Regulator
Are you having issues with the Gauge Cluster Voltage Regulator? Replacing this voltage regulator can fix the following the issues:
- Temperature gauge is not reading properly.
- Fuel gauge will not display 100% full.
- Tachometer needle is bouncing.
- Gauge cluster is not turning on.
- Light are flickering.
- Burn marks in flexible circuit board.

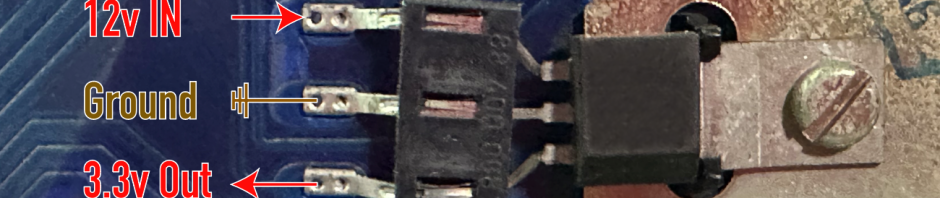

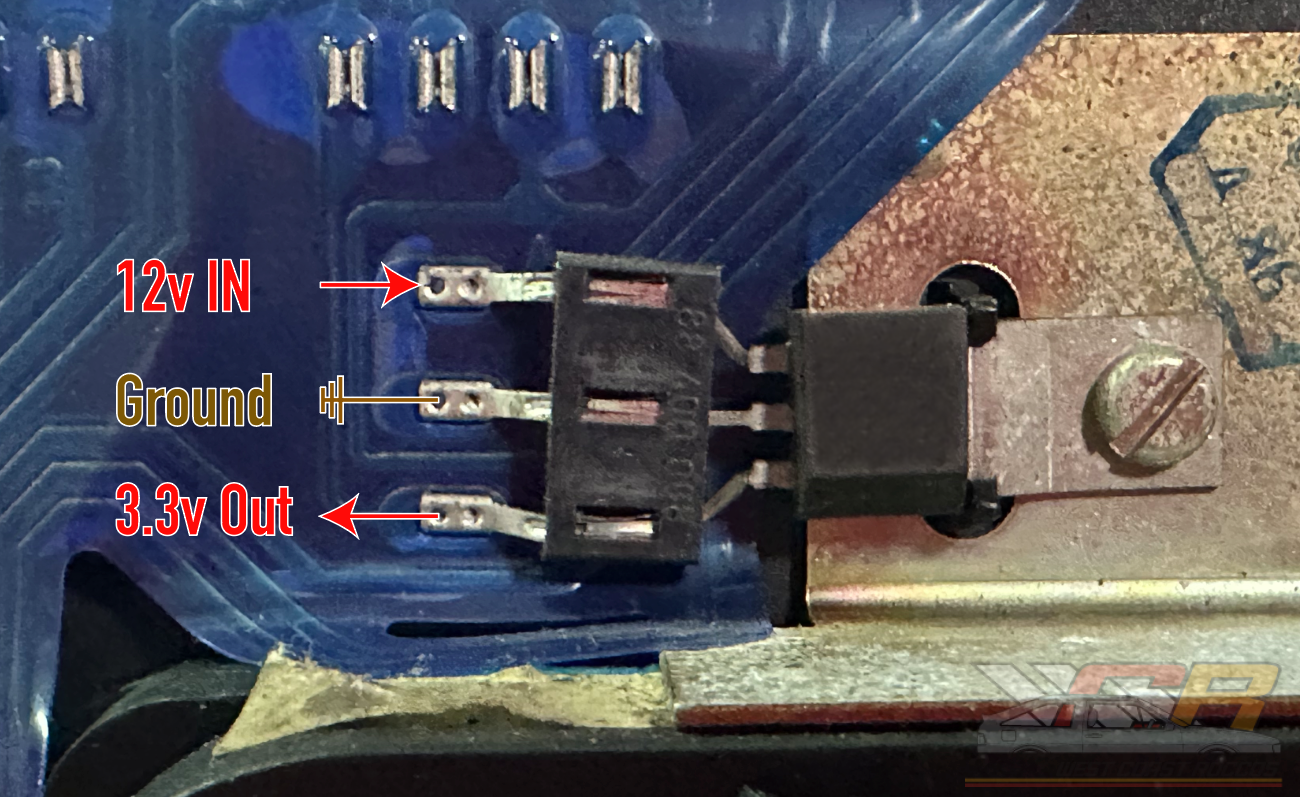

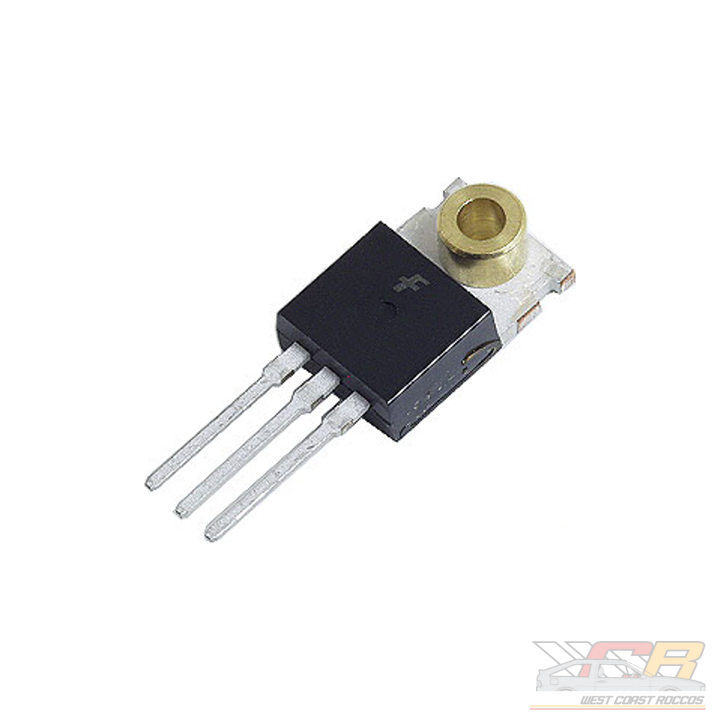

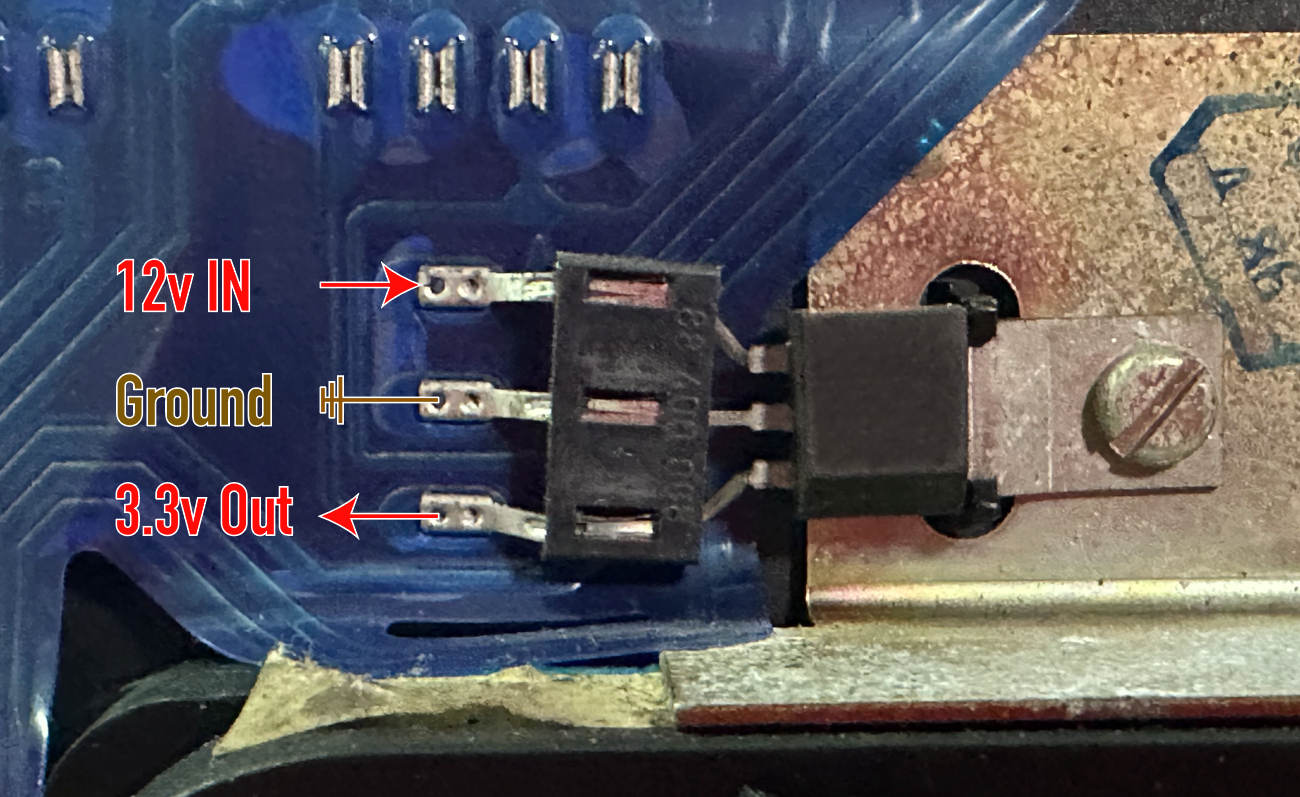

If you are experiencing any of these symptoms, you might need a new gauge cluster voltage regulator. To test this, just gain access to the back of your gauge cluster. Find the little regulator that looks like the one in the photo. Turn on your multimeter to V – DC 00.00. The symbol looks like this. Connect your multimeter’s ground to the chassis. Turn the vehicle on, but do not start the car. With the positive lead touch each lead on the regulator. One should be 3.3v, one 12-13v, one should be 0 (ground) If your voltage should 3.3v ±0.3v max. If it is outside that range, you may need a new gauge cluster voltage regulator.
OES Part No: 357919803 / 357 919 803
Fits Mk1 & Mk2 Scirocco Gauge Clusters
Also Fits:
Audi 100
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1989 | 1 | |||
| 1990 | 1 | |||
| 1991 | 1 |
Audi 100 Quattro
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1989 | 1 | |||
| 1990 | 1 | |||
| 1991 | 1 |
Audi 200
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1989 | 1 | |||
| 1990 | 1 | |||
| 1991 | 1 |
Audi 200 Quattro
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1989 | 1 | |||
| 1990 | 1 | |||
| 1991 | 1 |
Audi 4000
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1980 | L4 1.6L | 1 | ||
| 1980 | L5 2.2L | 1 | ||
| 1981 | L4 1.7L | 1 | ||
| 1981 | L5 2.2L | 1 | ||
| 1982 | L4 1.6L | 1 | ||
| 1982 | L4 1.7L | 1 | ||
| 1983 | L4 1.6L | 1 | ||
| 1983 | L4 1.7L | 1 | ||
| 1984 | L4 1.8L | 1 | ||
| 1985 | L4 1.8L | 1 | ||
| 1986 | L4 1.8L | 1 | ||
| 1987 | L4 1.8L | 1 |
Audi 4000 Quattro
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1984 | 1 | |||
| 1985 | 1 | |||
| 1986 | 1 | |||
| 1987 | 1 |
Audi 5000
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1978 | 1 | |||
| 1979 | L5 2.0L | 1 | ||
| 1979 | L5 2.2L | 1 | ||
| 1980 | L5 2.0L | 1 | ||
| 1980 | L5 2.2L | 1 | ||
| 1981 | L5 2.0L | 1 | ||
| 1981 | L5 2.2L | 1 | ||
| 1982 | L5 2.0L | 1 | ||
| 1982 | L5 2.2L WD B | 1 | ||
| 1982 | L5 2.2L WK C | 1 | ||
| 1983 | L5 2.0L | 1 | ||
| 1983 | Turbocharged L5 2.2L | 1 | ||
| 1984 | L5 2.2L | 1 | ||
| 1985 | L5 2.2L | 1 | ||
| 1986 | 1 | |||
| 1987 | L5 2.2L | 1 | ||
| 1987 | L5 2.3L | 1 | ||
| 1988 | L5 2.2L | 1 | ||
| 1988 | L5 2.3L | 1 |
Audi 5000 Quattro
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1986 | D | 1 | ||
| 1987 | L5 2.2L | 1 | ||
| 1987 | L5 2.3L | 1 | ||
| 1988 | L5 2.2L | 1 | ||
| 1988 | L5 2.3L | 1 |
Audi 80
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1988 | 1 | |||
| 1989 | 1 | |||
| 1990 | 1 | |||
| 1991 | 1 | |||
| 1992 | 1 |
Audi 80 Quattro
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1988 | 1 | |||
| 1989 | 1 | |||
| 1990 | 1 | |||
| 1991 | 1 | |||
| 1992 | 1 |
Audi 90
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1988 | L4 2.0L | 1 | ||
| 1988 | L5 2.3L | 1 | ||
| 1989 | 1 | |||
| 1990 | 1 | |||
| 1991 | 1 | |||
| 1993 | 1 | |||
| 1994 | 1 | |||
| 1995 | 1 |
Audi 90 Quattro
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1988 | 1 | |||
| 1989 | 1 | |||
| 1990 | 1 | |||
| 1991 | 1 | |||
| 1993 | 1 | |||
| 1994 | 1 | |||
| 1995 | 1 |
Audi Cabriolet
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1994 | 1 | |||
| 1995 | 1 | |||
| 1996 | 1 |
Audi Coupe
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1981 | 1 | |||
| 1982 | 1 | |||
| 1983 | 1 | |||
| 1984 | L5 2.2L | 1 | ||
| 1985 | 1 | |||
| 1986 | 1 | |||
| 1987 | L5 2.2L | 1 | ||
| 1987 | L5 2.3L | 1 |
Audi Coupe Quattro
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1990 | 1 | |||
| 1991 | 1 |
Audi Quattro
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1983 | 1 | |||
| 1984 | 1 | |||
| 1985 | 1 |
Volkswagen Cabriolet
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1985 | 1 | |||
| 1986 | 1 | |||
| 1987 | 1 | |||
| 1988 | 1 | |||
| 1989 | 1 | |||
| 1990 | 1 | |||
| 1991 | 1 | |||
| 1992 | 1 | |||
| 1993 | 1 |
Volkswagen Corrado
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1990 | 1 | |||
| 1991 | 1 | |||
| 1992 | 1 | |||
| 1993 | 1 | |||
| 1994 | 1 | |||
| 1995 | 1 |
Volkswagen Dasher
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1978 | 1 | |||
| 1979 | L4 1.5L | 1 | ||
| 1979 | L4 1.6L | 1 | ||
| 1980 | L4 1.5L | 1 | ||
| 1980 | L4 1.6L | 1 | ||
| 1981 | 1 |
Volkswagen EuroVan
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1992 | 1 | |||
| 1994 | L5 2.5L | 1 | ||
| 1995 | L5 2.5L | 1 | ||
| 1996 | L5 2.5L | 1 |
Volkswagen Golf
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1985 | L4 1.6L | 1 | ||
| 1985 | L4 1.8L GX A | 1 | ||
| 1985 | L4 1.8L HT B | 1 | ||
| 1986 | L4 1.6L | 1 | ||
| 1986 | L4 1.8L GX A | 1 | ||
| 1986 | L4 1.8L RD B | 1 | ||
| 1987 | L4 1.6L | 1 | ||
| 1987 | L4 1.8L | 1 | ||
| 1988 | L4 1.6L | 1 | ||
| 1988 | L4 1.8L | 1 | ||
| 1989 | L4 1.8L | 1 | ||
| 1990 | L4 1.8L | 1 | ||
| 1990 | L4 2.0L | 1 | ||
| 1991 | L4 1.8L | 1 | ||
| 1991 | L4 2.0L | 1 | ||
| 1992 | L4 1.8L | 1 | ||
| 1992 | L4 2.0L | 1 |
Volkswagen Jetta
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1980 | 1 | |||
| 1981 | L4 1.6L | 1 | ||
| 1981 | L4 1.7L | 1 | ||
| 1982 | L4 1.6L | 1 | ||
| 1982 | L4 1.7L | 1 | ||
| 1983 | L4 1.6L | 1 | ||
| 1983 | L4 1.7L | 1 | ||
| 1984 | L4 1.6L | 1 | ||
| 1984 | L4 1.7L | 1 | ||
| 1984 | L4 1.8L | 1 | ||
| 1985 | GL GAS L4 1.8L GX A | 1 | ||
| 1985 | Base L4 1.8L GX A | 1 | ||
| 1985 | GLI GAS L4 1.8L HT B | 1 | ||
| 1986 | L4 1.6L | 1 | ||
| 1986 | L4 1.8L | 1 | ||
| 1987 | L4 1.8L | 1 | ||
| 1988 | L4 1.6L | 1 | ||
| 1988 | L4 1.8L | 1 | ||
| 1989 | L4 1.6L | 1 | ||
| 1989 | L4 1.8L | 1 | ||
| 1990 | L4 1.6L | 1 | ||
| 1990 | L4 1.8L | 1 | ||
| 1990 | L4 2.0L | 1 | ||
| 1991 | L4 1.6L | 1 | ||
| 1991 | L4 1.8L RV A | 1 | ||
| 1991 | L4 1.8L RV B | 1 | ||
| 1991 | L4 1.8L RV K | 1 | ||
| 1991 | L4 2.0L | 1 | ||
| 1992 | L4 1.6L | 1 | ||
| 1992 | L4 1.8L RV A | 1 | ||
| 1992 | L4 1.8L RV B | 1 | ||
| 1992 | L4 1.8L RV K | 1 | ||
| 1992 | L4 2.0L | 1 |
Volkswagen Passat
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1990 | L4 2.0L | 1 | ||
| 1991 | L4 2.0L | 1 |
Volkswagen Quantum
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1982 | L4 1.6L | 1 | ||
| 1982 | L4 1.7L | 1 | ||
| 1983 | L4 1.6L | 1 | ||
| 1983 | L4 1.7L | 1 | ||
| 1983 | L5 2.2L | 1 | ||
| 1984 | L4 1.6L | 1 | ||
| 1984 | L4 1.8L | 1 | ||
| 1984 | L5 2.2L KM | 1 | ||
| 1985 | L4 1.6L | 1 | ||
| 1985 | L4 1.8L | 1 | ||
| 1985 | L5 2.2L | 1 | ||
| 1986 | L5 2.2L | 1 | ||
| 1987 | L5 2.2L | 1 | ||
| 1988 | 1 |
Volkswagen Rabbit
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1976 | 1 | |||
| 1977 | L4 1.5L | 1 | ||
| 1977 | L4 1.6L | 1 | ||
| 1978 | L4 1.5L | 1 | ||
| 1979 | L4 1.5L | 1 | ||
| 1980 | L4 1.5L FX | 1 | ||
| 1980 | L4 1.5L | 1 | ||
| 1980 | L4 1.6L | 1 | ||
| 1981 | L4 1.6L | 1 | ||
| 1981 | L4 1.7L | 1 | ||
| 1982 | L4 1.6L | 1 | ||
| 1982 | L4 1.7L | 1 | ||
| 1983 | L4 1.6L | 1 | ||
| 1983 | L4 1.7L | 1 | ||
| 1983 | L4 1.8L | 1 | ||
| 1984 | L4 1.6L | 1 | ||
| 1984 | L4 1.7L | 1 | ||
| 1984 | L4 1.8L | 1 |
Volkswagen Rabbit Convertible
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1980 | 1 | |||
| 1981 | 1 | |||
| 1982 | 1 | |||
| 1983 | 1 | |||
| 1984 | 1 |
Volkswagen Rabbit Pickup
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1980 | L4 1.6L | 1 | ||
| 1981 | L4 1.6L | 1 | ||
| 1981 | L4 1.7L | 1 | ||
| 1982 | L4 1.6L | 1 | ||
| 1982 | L4 1.7L | 1 | ||
| 1983 | Naturally Aspirated L4 1.6L CR G | 1 | ||
| 1983 | L4 1.7L | 1 |
Volkswagen Scirocco
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1976 | 1 | |||
| 1977 | 1 | |||
| 1978 | 1 | |||
| 1979 | 1 | |||
| 1980 | 1 | |||
| 1981 | 1 | |||
| 1982 | 1 | |||
| 1983 | L4 1.7L | 1 | ||
| 1984 | 1 | |||
| 1985 | 1 | |||
| 1986 | 1 | |||
| 1987 | 1 | |||
| 1988 | L4 1.8L B | 1 | ||
| 1988 | L4 1.8L C | 1 |
Volkswagen Transporter
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1985 | 1 | |||
| 1986 | 1 | |||
| 1987 | 1 | |||
| 1988 | 1 | |||
| 1989 | 1 | |||
| 1990 | 1 | |||
| 1991 | 1 | |||
| 1992 | 1 | |||
| 1993 | L5 2.5L | 1 |
Volkswagen Vanagon
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1980 | 1 | |||
| 1981 | 1 | |||
| 1982 | H4 2.0L | 1 | ||
| 1982 | L4 1.6L | 1 | ||
| 1984 | H4 1.9L | 1 | ||
| 1985 | H4 1.9L | 1 | ||
| 1987 | 1 | |||
| 1988 | 1 | |||
| 1989 | 1 | |||
| 1990 | 1 | |||
| 1991 | 1 |
Volvo 240
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1990 | 1 | |||
| 1991 | 1 | |||
| 1992 | 1 | |||
| 1993 | 1 |
Volvo 244
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1986 | 1 | |||
| 1987 | 1 | |||
| 1988 | 1 | |||
| 1989 | 1 |
Volvo 245
| year | vehicle attributes | Quantity | position | part description |
|---|---|---|---|---|
| 1986 | 1 | |||
| 1987 | 1 | |||
| 1988 | 1 | |||
| 1989 | 1 |
