020 Green Seal Sleeve

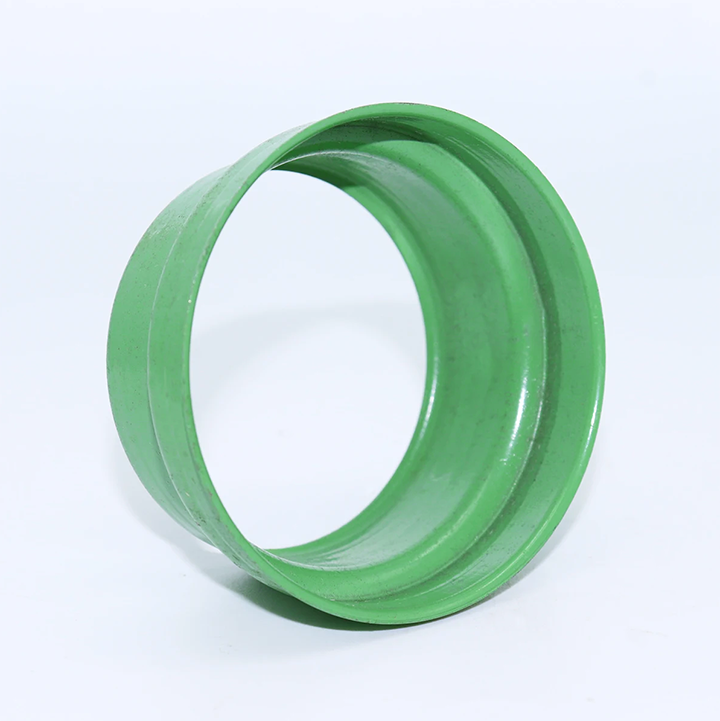

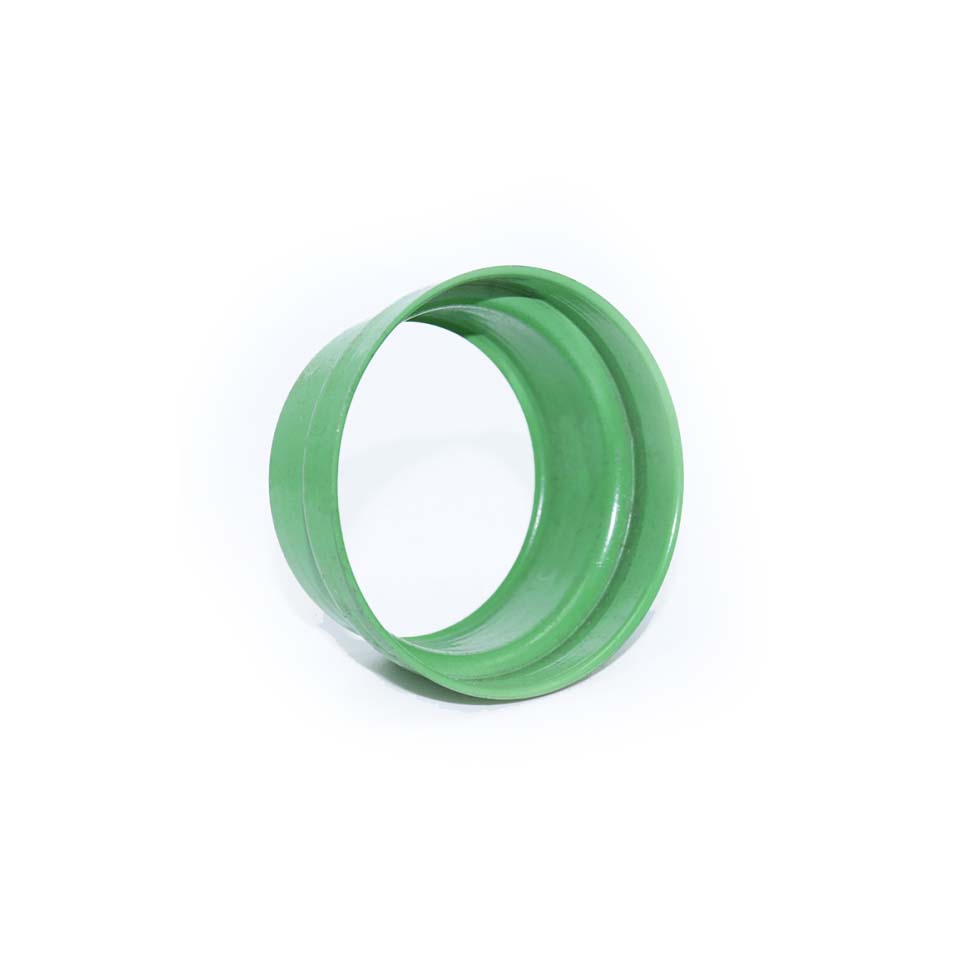

020 Green Seal Sleeve*

10 in stock

SKU: 020301192A-Green-Flange-Sleeve Categories: ,


020 Green Seal Sleeve*

This 020 Green Seal Sleeve holds the CV flange seal in your Scirocco’s manual transmission. It’s a good idea to replace these when resealing the CV output flange on your 020 transmission

Don’t forget to also order a 020 CV Flange Seal Kit when replacing this sleeve.

Before Ordering

Make sure you measure and/or inspect your vehicle before ordering. Rule of thumb, if you have a green seal sleeve around the flange, you have the new stype. For example, early Mk1 w/ 90mm flanges use a different seal. All the info you need for this is located on Broke VWs website


When installing the seal or the sleeve, it’s a good idea to use a very very thin coat of RTV silicone on the outside of the seal / outside of the sleeve. Furthermore, this will prevent the seal or sleeve from leaking if there are any irregular surfaces.

Qty 1 = 1 sleeve

Replaces Part No: 020 301 192 A / 020301192A

*NOTE: YOU MUST HAVE A VW SPECIAL TOOL ‘VW 201’TO INSTALL THE CV FLANGES AFTER THEY ARE REMOVED. The flanges are spring loaded and you WILL mess up your differential if you attempt to install it withoutĀ this too.

Additional information

Weight .2 lbs
Dimensions 3 × 3 × 3 in
